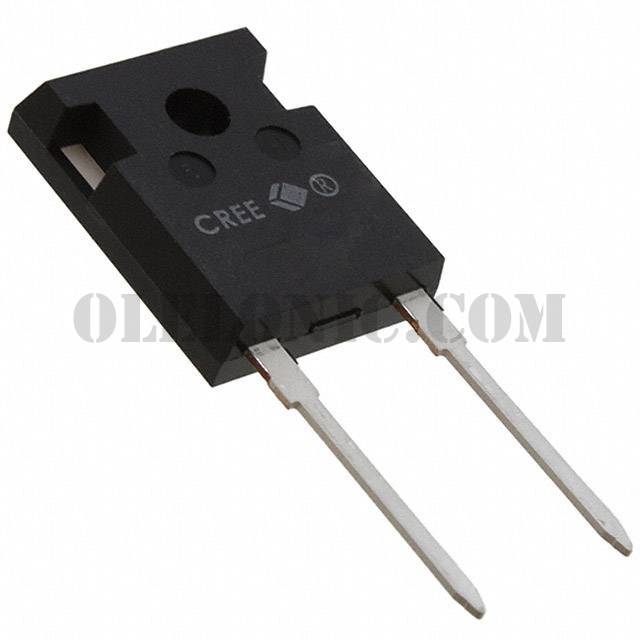

C3D25170H

C3D25170H

Part NumberC3D25170H

ManufacturerCree/Wolfspeed

DescriptionDIODE SCHOTTKY 1.7KV 26.3A TO247

DatasheetC3D25170H

Package / CaseTO-247-2

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Silicon Carbide Schottky 1700V 26.3A (DC) Through Hole TO-247-2

To learn about the specification of C3D25170H, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add C3D25170H with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of C3D25170H.
We are offering C3D25170H for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

C3D25170H - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	C3D25170H
Standard Package	30
Manufacturer	Cree/Wolfspeed
Series	Z-Rec®
Packaging	Tube
Part Status	Active
Diode Type	Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max)	1700V
Current - Average Rectified (Io)	26.3A (DC)
Voltage - Forward (Vf) (Max) @ If	2.5V @ 25A
Speed	No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr)	0ns
Current - Reverse Leakage @ Vr	100µA @ 1700V
Capacitance @ Vr, F	2079pF @ 0V, 1MHz
Mounting Type	Through Hole
Package / Case	TO-247-2
Supplier Device Package	TO-247-2
Operating Temperature - Junction	-55°C ~ 175°C
