Categories	Capacitors / Ceramic Capacitors
Datasheet	KPS Series, High Voltage Commercial
Standard Package	1
Manufacturer	KEMET
Series	KPS SMD Comm X7R HV
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	0.47µF
Tolerance	±20%
Voltage - Rated	630V
Temperature Coefficient	X7R
Operating Temperature	-55°C ~ 125°C
Features	Low ESL (Stacked), High Voltage
Ratings	-
Applications	Boardflex Sensitive
Failure Rate	-
Mounting Type	Surface Mount, MLCC

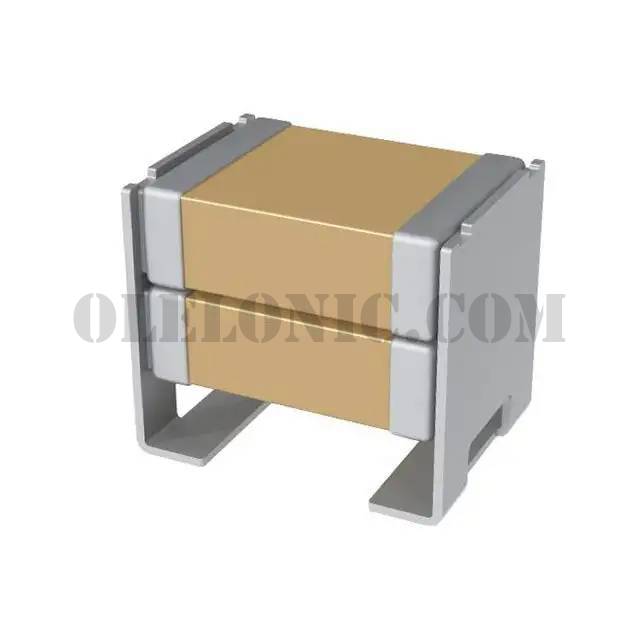

Package / Case	Stacked SMD, 2 J-Lead
Size / Dimension	0.236" L x 0.197" W (6.00mm x 5.00mm)
Height - Seated (Max)	-
Thickness (Max)	0.217" (5.50mm)
Lead Spacing	-
Lead Style	J-Lead

C2220C224KBR1C7186	KEMET, 0.22µF ±10% 630V Ceramic Capacitor X7R SMD, J-Lead, KPS SMD Comm X7R HV	View
C2220C474MBR2C7186	KEMET, 0.47µF ±20% 630V Ceramic Capacitor X7R Stacked SMD, 2 J-Lead, KPS SMD Comm X7R HV	View
C2220C474KCR1C7186	KEMET, 0.47µF ±10% 500V Ceramic Capacitor X7R SMD, J-Lead, KPS SMD Comm X7R HV	View
C2220C105MCR2C7186	KEMET, 1µF ±20% 500V Ceramic Capacitor X7R Stacked SMD, 2 J-Lead, KPS SMD Comm X7R HV	View
C2220C474KCR1C7186	KEMET, 0.47µF ±10% 500V Ceramic Capacitor X7R SMD, J-Lead, KPS SMD Comm X7R HV	View
C2220C224MBR1C7186	KEMET, 0.22µF ±20% 630V Ceramic Capacitor X7R SMD, J-Lead, KPS SMD Comm X7R HV	View
C2220C474MCR1C7186	KEMET, 0.47µF ±20% 500V Ceramic Capacitor X7R SMD, J-Lead, KPS SMD Comm X7R HV	View
C2220C474MCR1C7186	KEMET, 0.47µF ±20% 500V Ceramic Capacitor X7R SMD, J-Lead, KPS SMD Comm X7R HV	View
C2220C105MCR2C7186	KEMET, 1µF ±20% 500V Ceramic Capacitor X7R Stacked SMD, 2 J-Lead, KPS SMD Comm X7R HV	View
C2220C224MBR1C7186	KEMET, 0.22µF ±20% 630V Ceramic Capacitor X7R SMD, J-Lead, KPS SMD Comm X7R HV	View
C2220C224KBR1C7186	KEMET, 0.22µF ±10% 630V Ceramic Capacitor X7R SMD, J-Lead, KPS SMD Comm X7R HV	View
C2220C474MBR2C7186	KEMET, 0.47µF ±20% 630V Ceramic Capacitor X7R Stacked SMD, 2 J-Lead, KPS SMD Comm X7R HV	View

C2220C474MBR2C7186

Part NumberC2220C474MBR2C7186
