BTS282ZE3180AATMA2
BTS282ZE3180AATMA2
Part Number BTS282ZE3180AATMA2
Description MOSFET N-CH 49V 80A TO-220-7

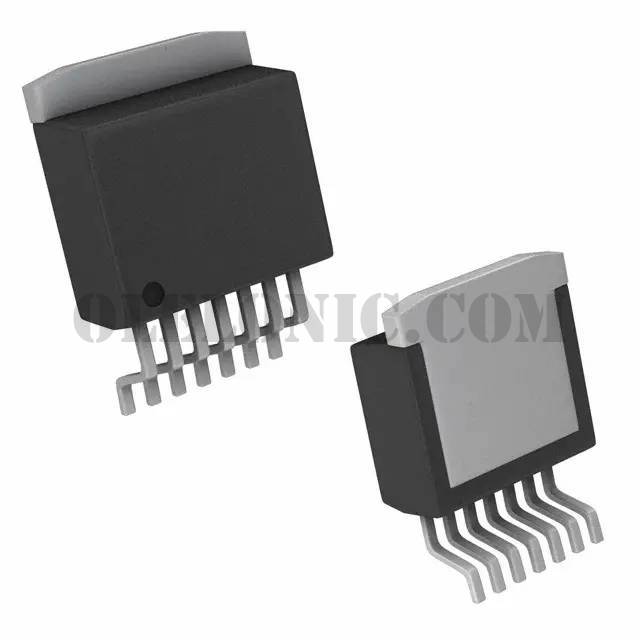

Package / Case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description N-Channel 49V 80A (Tc) 300W (Tc) Surface Mount PG-TO263-7-1
To learn about the specification of BTS282ZE3180AATMA2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BTS282ZE3180AATMA2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BTS282ZE3180AATMA2.
We are offering BTS282ZE3180AATMA2 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
BTS282ZE3180AATMA2 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet BTS282Z
Standard Package 1000
Manufacturer Infineon Technologies
Series TEMPFET®
Packaging Tape & Reel (TR)
Part Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 49V
Current - Continuous Drain (Id) @ 25°C 80A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 6.5mOhm @ 36A, 10V
Vgs(th) (Max) @ Id 2V @ 240µA
Gate Charge (Qg) (Max) @ Vgs 232nC @ 10V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 4800pF @ 25V
FET Feature Temperature Sensing Diode
Power Dissipation (Max) 300W (Tc)
Operating Temperature -40°C ~ 175°C (TJ)
Mounting Type Surface Mount
Supplier Device Package PG-TO263-7-1
Package / Case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
