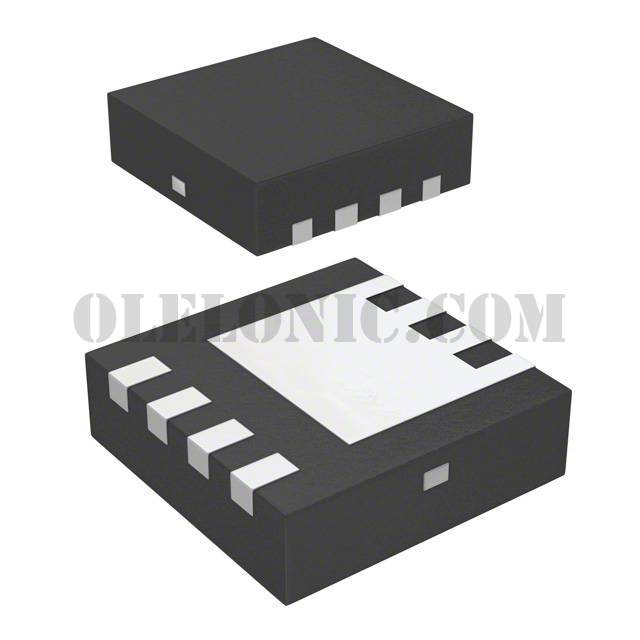

BSZ067N06LS3GATMA1

Part NumberBSZ067N06LS3GATMA1

To learn about the specification of BSZ067N06LS3GATMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BSZ067N06LS3GATMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BSZ067N06LS3GATMA1.
We are offering BSZ067N06LS3GATMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	BSZ067N06LS3 G
Standard Package	5000
Manufacturer	Infineon Technologies
Series	OptiMOS™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	14A (Ta), 20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	6.7mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.2V @ 35µA
Gate Charge (Qg) (Max) @ Vgs	67nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	5100pF @ 30V
FET Feature	-
Power Dissipation (Max)	2.1W (Ta), 69W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TSDSON-8
Package / Case	8-PowerVDFN
