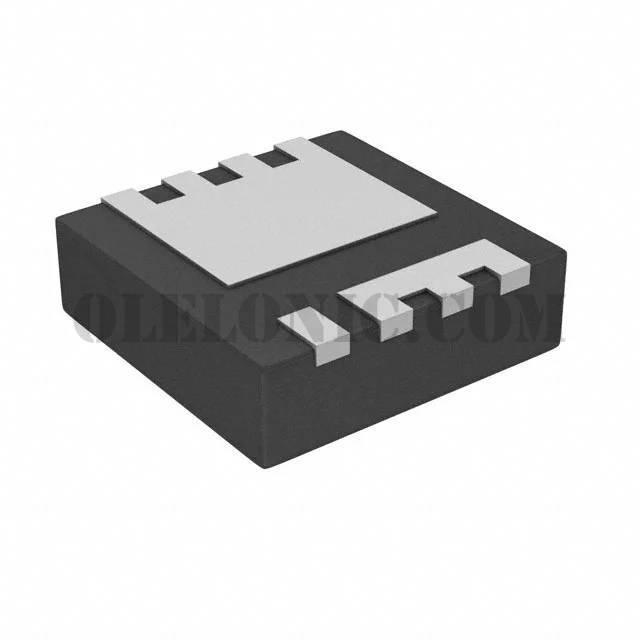

BSZ065N03LSATMA1

BSZ065N03LSATMA1

Part NumberBSZ065N03LSATMA1

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 30V 12A TSDSON-8

DatasheetBSZ065N03LS

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 12A (Ta), 40A (Tc) 2.1W (Ta), 26W (Tc) Surface Mount PG-TSDSON-8-FL

To learn about the specification of BSZ065N03LSATMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BSZ065N03LSATMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BSZ065N03LSATMA1.
We are offering BSZ065N03LSATMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BSZ065N03LSATMA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	BSZ065N03LS
Standard Package	5000
Manufacturer	Infineon Technologies
Series	OptiMOS™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	12A (Ta), 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	6.5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	10nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	670pF @ 15V
FET Feature	-
Power Dissipation (Max)	2.1W (Ta), 26W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TSDSON-8-FL
Package / Case	8-PowerTDFN
