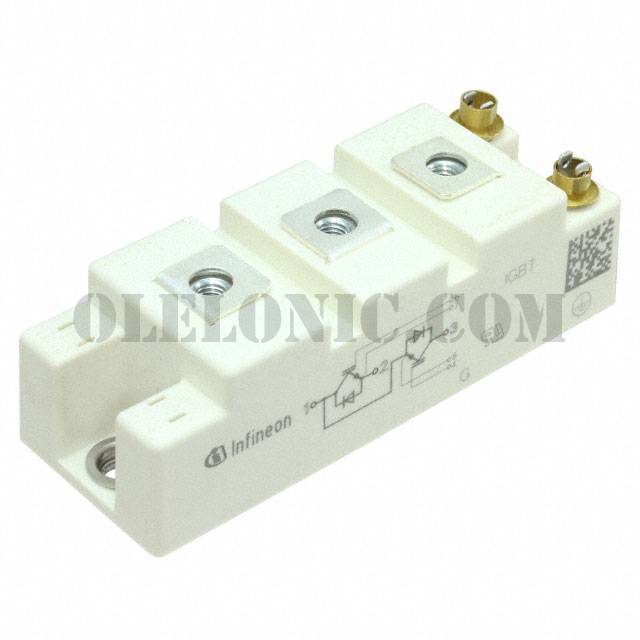

BSM200GB60DLCHOSA1

Part NumberBSM200GB60DLCHOSA1

ManufacturerInfineon Technologies

DescriptionIGBT MODULE 600V 230A

DatasheetBSM200GB60DLC

Package / CaseModule

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Single 600V 230A 730W Chassis Mount Module

To learn about the specification of BSM200GB60DLCHOSA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BSM200GB60DLCHOSA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BSM200GB60DLCHOSA1.
We are offering BSM200GB60DLCHOSA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BSM200GB60DLCHOSA1 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

BSM200GB60DLC

Standard Package

Manufacturer

Infineon Technologies

Series

Part Status

Not For New Designs

IGBT Type

Configuration

Single

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

230A

Power - Max

730W

Vce(on) (Max) @ Vge, Ic

2.45V @ 15V, 200A

Current - Collector Cutoff (Max)

500µA

Input Capacitance (Cies) @ Vce

9nF @ 25V

Input

Standard

NTC Thermistor

Operating Temperature

-40°C ~ 125°C

Mounting Type

Chassis Mount

Package / Case

Module

Supplier Device Package

Module
