BSC025N03LSGATMA1

BSC025N03LSGATMA1

Part NumberBSC025N03LSGATMA1

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 30V 100A TDSON-8

DatasheetBSC025N03LS G

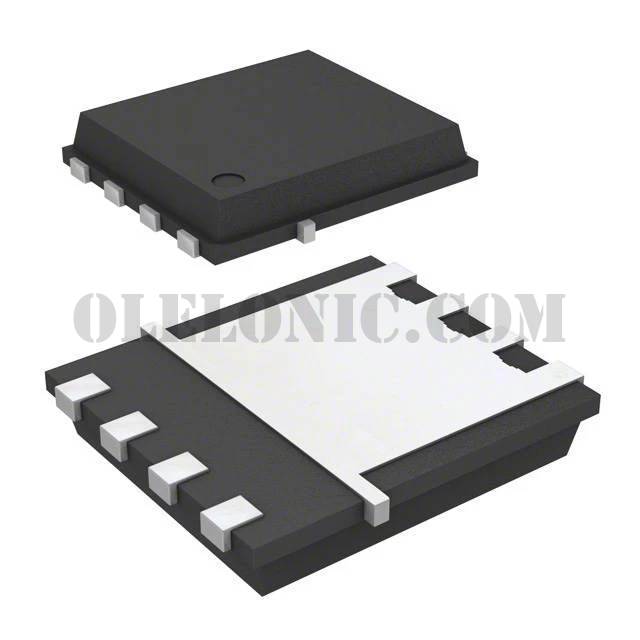

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 25A (Ta), 100A (Tc) 2.5W (Ta), 83W (Tc) Surface Mount PG-TDSON-8-5

To learn about the specification of BSC025N03LSGATMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BSC025N03LSGATMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BSC025N03LSGATMA1.
We are offering BSC025N03LSGATMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BSC025N03LSGATMA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	BSC025N03LS G
Standard Package	1
Manufacturer	Infineon Technologies
Series	OptiMOS™
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	25A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	2.5mOhm @ 30A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	74nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6100pF @ 15V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta), 83W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TDSON-8-5
Package / Case	8-PowerTDFN
