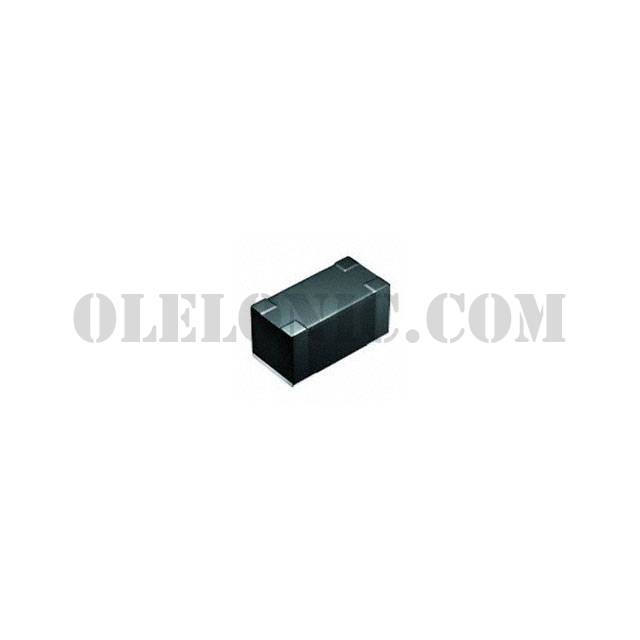

BRL2518T1R0M


BRL2518T1R0M

Part NumberBRL2518T1R0M

Manufacturer

Description

Datasheet

Package / Case1007 (2518 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

BRL2518T1R0M - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package3000
ManufacturerTaiyo Yuden
SeriesBR, L Type
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance1µH
Tolerance±20%
Current Rating (Amps)1A
Current - Saturation1.6A
ShieldingUnshielded
DC Resistance (DCR)104mOhm Max
Q @ Freq-
Frequency - Self Resonant130MHz
Ratings-
Operating Temperature-40°C ~ 105°C
Inductance Frequency - Test7.96MHz
Mounting TypeSurface Mount
Package / Case1007 (2518 Metric)
Supplier Device Package1007 (2518 Metric)
Size / Dimension0.098" L x 0.071" W (2.50mm x 1.80mm)
Height - Seated (Max)0.047" (1.20mm)
