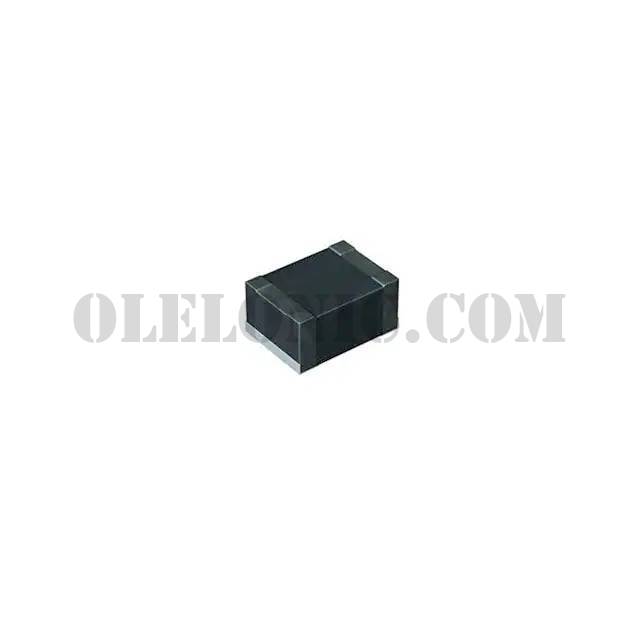

BRL3225T6R8M


BRL3225T6R8M

Part NumberBRL3225T6R8M

Manufacturer

Description

Datasheet

Package / Case1210 (3225 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

BRL3225T6R8M - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package2000
ManufacturerTaiyo Yuden
SeriesBR, L Type
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance6.8µH
Tolerance±20%
Current Rating (Amps)770mA
Current - Saturation1.05A
ShieldingUnshielded
DC Resistance (DCR)324mOhm Max
Q @ Freq-
Frequency - Self Resonant90MHz
Ratings-
Operating Temperature-40°C ~ 105°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / Case1210 (3225 Metric)
Supplier Device Package1210
Size / Dimension0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)0.067" (1.70mm)
