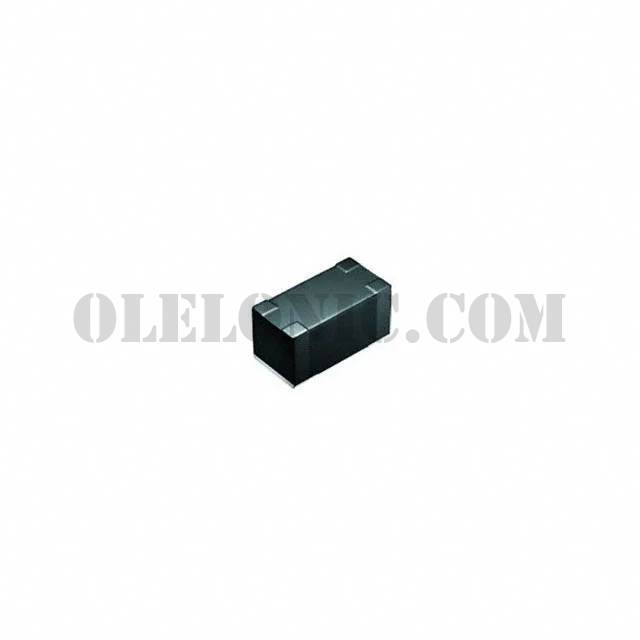

BRL2012T3R3M


BRL2012T3R3M

Part NumberBRL2012T3R3M

Manufacturer

Description

Datasheet

Package / Case0805 (2012 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

BRL2012T3R3M - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package3000
ManufacturerTaiyo Yuden
SeriesBR, L Type
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance3.3µH
Tolerance±20%
Current Rating (Amps)440mA
Current - Saturation490mA
ShieldingUnshielded
DC Resistance (DCR)650mOhm Max
Q @ Freq-
Frequency - Self Resonant190MHz
Ratings-
Operating Temperature-40°C ~ 105°C
Inductance Frequency - Test7.96MHz
Mounting TypeSurface Mount
Package / Case0805 (2012 Metric)
Supplier Device Package0805 (2012 Metric)
Size / Dimension0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)0.039" (1.00mm)
