Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF
Datasheet	RF Discretes Selection Guide
Standard Package	1
Manufacturer	Infineon Technologies
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	5.5V
Frequency - Transition	25GHz
Noise Figure (dB Typ @ f)	1.1dB @ 1.8GHz
Gain	19.5dB
Power - Max	160mW
DC Current Gain (hFE) (Min) @ Ic, Vce	60 @ 5mA, 4V
Current - Collector (Ic) (Max)	35mA
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount

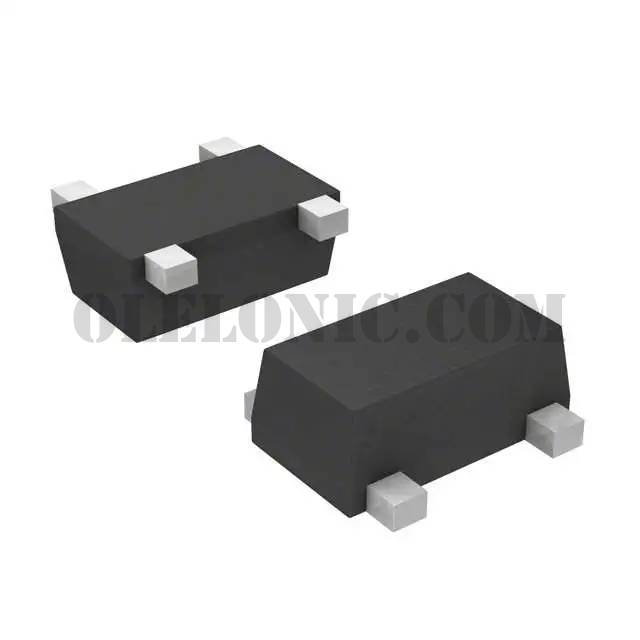

Package / Case	4-SMD, Flat Leads
Supplier Device Package	4-TSFP
Base Part Number	BFP420

MAX2601ESA+	Maxim Integrated, RF Transistor NPN 15V 1.2A 1GHz 6.4W Surface Mount 8-SOIC-EP,	View
BFP193WH6327XTSA1	Infineon Technologies, RF Transistor NPN 12V 80mA 8GHz 580mW Surface Mount PG-SOT343-4,	View
ON5088,115	NXP USA Inc., RF Transistor NPN 10V 40mA 55GHz 136mW Surface Mount 4-DFP,	View
BFU710F,115	NXP USA Inc., RF Transistor NPN 2.8V 10mA 43GHz 136mW Surface Mount 4-DFP,	View
BLT81,115	NXP USA Inc., RF Transistor NPN 9.5V 500mA 900MHz 2W Surface Mount SOT-223,	View
2SC5087YTE85LF	Toshiba Semiconductor and Storage, RF Transistor NPN 12V 80mA 7GHz 150mW Surface Mount SMQ,	View
BFP540FESDH6327XTSA1	Infineon Technologies, RF Transistor NPN 5V 80mA 30GHz 250mW Surface Mount 4-TSFP,	View
BFP740FH6327XTSA1	Infineon Technologies, RF Transistor NPN 4.7V 30mA 42GHz 160mW Surface Mount 4-TSFP,	View
MMBTH10RG	ON Semiconductor, RF Transistor NPN 40V 50mA 450MHz 225mW Surface Mount SOT-23-3,	View
KST10MTF	ON Semiconductor, RF Transistor NPN 25V 650MHz 350mW Surface Mount SOT-23-3,	View
BFP620H7764XTSA1	Infineon Technologies, RF Transistor NPN 2.8V 80mA 65GHz 185mW Surface Mount PG-SOT343-4,	View
BFS17NTA	Diodes Incorporated, RF Transistor NPN 11V 50mA 3.2GHz 330mW Surface Mount SOT-23-3,	View

BFP420FH6327XTSA1

Part NumberBFP420FH6327XTSA1
