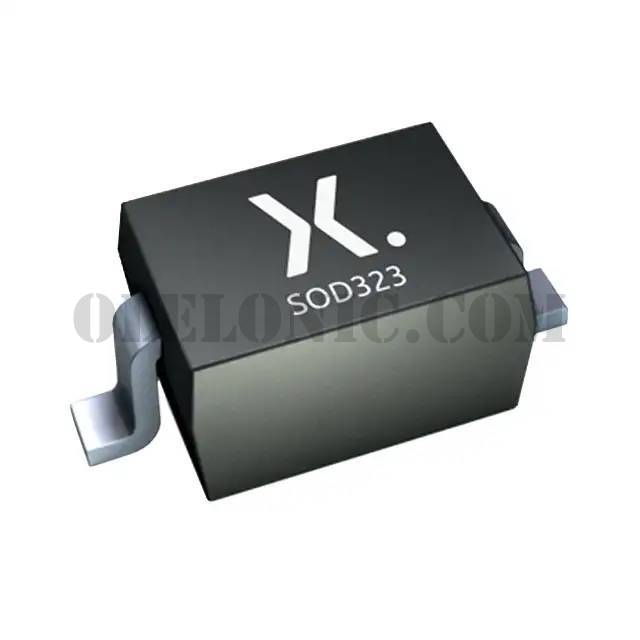

BAS316,135

BAS316,135

Part NumberBAS316,135

ManufacturerNexperia USA Inc.

DescriptionDIODE GEN PURP 100V 250MA SOD323

DatasheetBAS16 Series Datasheet

Package / CaseSC-76, SOD-323

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 100V 250mA (DC) Surface Mount SOD-323

To learn about the specification of BAS316,135, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BAS316,135 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BAS316,135.
We are offering BAS316,135 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BAS316,135 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	BAS16 Series Datasheet
Standard Package	10000
Manufacturer	Nexperia USA Inc.
Series	Automotive, AEC-Q101, BAS16
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	100V
Current - Average Rectified (Io)	250mA (DC)
Voltage - Forward (Vf) (Max) @ If	1.25V @ 150mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	4ns
Current - Reverse Leakage @ Vr	500nA @ 80V
Capacitance @ Vr, F	1.5pF @ 0V, 1MHz
Mounting Type	Surface Mount
Package / Case	SC-76, SOD-323
Supplier Device Package	SOD-323
Operating Temperature - Junction	150°C (Max)
Base Part Number	BAS316
