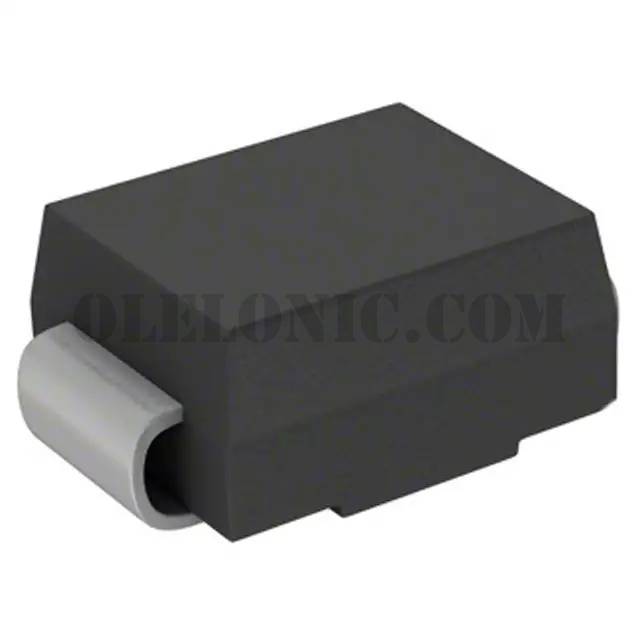

S2A-13-F

S2A-13-F

Part NumberS2A-13-F

ManufacturerDiodes Incorporated

DescriptionDIODE GEN PURP 50V 1.5A SMB

DatasheetS2A-S2M, S2AA-S2MA

Package / CaseDO-214AA, SMB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 50V 1.5A Surface Mount SMB

To learn about the specification of S2A-13-F, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add S2A-13-F with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of S2A-13-F.
We are offering S2A-13-F for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

S2A-13-F - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	S2A-S2M, S2AA-S2MA
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	50V
Current - Average Rectified (Io)	1.5A
Voltage - Forward (Vf) (Max) @ If	1.15V @ 1.5A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	5µA @ 50V
Capacitance @ Vr, F	20pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB
Supplier Device Package	SMB
Operating Temperature - Junction	-65°C ~ 150°C
Base Part Number	S2A
