B82144F2394J000
B82144F2394J000
Part Number B82144F2394J000
Description FIXED IND 390UH 650MA 1.72 OHM
Package / Case Axial
Unit Price Request a Quote
Lead Time To be Confirmed

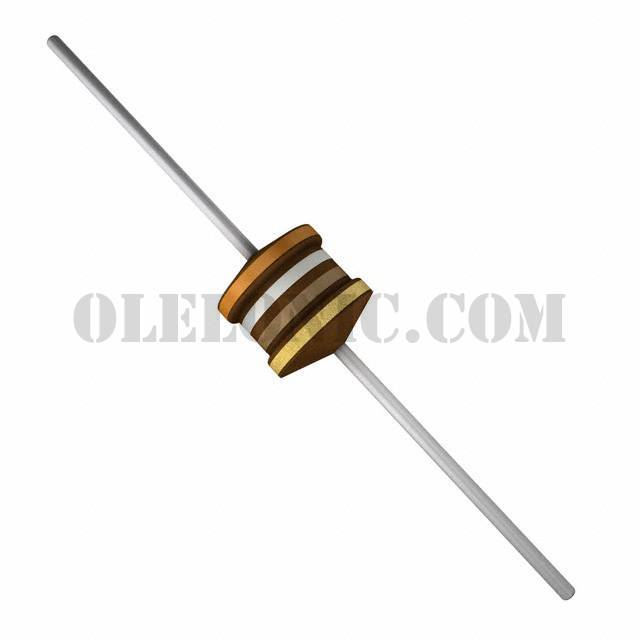

Detailed Description 390µH Unshielded Wirewound Inductor 650mA 1.72Ohm Max Axial
To learn about the specification of B82144F2394J000, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add B82144F2394J000 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of B82144F2394J000.
We are offering B82144F2394J000 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
B82144F2394J000 - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet B82144F2 Series
Standard Package 1
Manufacturer EPCOS (TDK)
Series LBC
Packaging Cut Tape (CT)
Part Status Active
Type Wirewound
Material - Core Ferrite
Inductance 390µH
Tolerance ±5%
Current Rating (Amps) 650mA
Current - Saturation 480mA
Shielding Unshielded
DC Resistance (DCR) 1.72Ohm Max
Q @ Freq 40 @ 79.6kHz
Frequency - Self Resonant 2.5MHz
Ratings -
Operating Temperature -55°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Type Through Hole
Package / Case Axial
Supplier Device Package Axial
Size / Dimension 0.256" Dia x 0.362" L (6.50mm x 9.20mm)
Height - Seated (Max) -
