Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	B82144A Series
Standard Package	1
Manufacturer	EPCOS (TDK)
Series	LBC
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	22mH
Tolerance	±5%
Current Rating (Amps)	40mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	120Ohm Max
Q @ Freq	50 @ 79.6kHz
Frequency - Self Resonant	260kHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Through Hole
Package / Case	Axial
Supplier Device Package	-
Size / Dimension	0.205" Dia x 0.472" L (5.20mm x 12.00mm)
Height - Seated (Max)	-

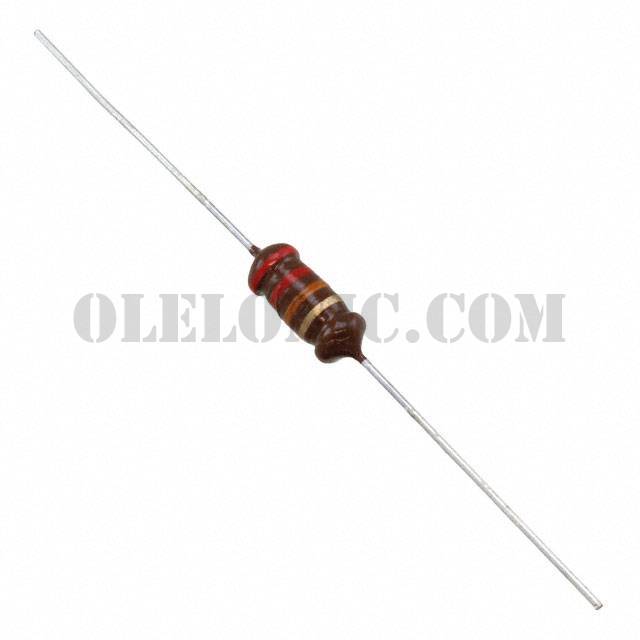

B82144A2226J000	EPCOS (TDK), 22mH Unshielded Wirewound Inductor 40mA 120Ohm Max Axial, LBC	View
B82144A2222K000	EPCOS (TDK), 2.2µH Unshielded Wirewound Inductor 1.9A 110mOhm Max Axial, LBC	View
B82144F2682K000	EPCOS (TDK), 6.8µH Unshielded Wirewound Inductor 2.75A 95mOhm Max Axial, LBC	View
B82144F1105J000	EPCOS (TDK), 1mH Unshielded Wirewound Inductor 280mA 4.2Ohm Max Axial, LBC	View
B82144B2224J000	EPCOS (TDK), 220µH Unshielded Wirewound Inductor 900mA 1.01Ohm Max Radial, Vertical Cylinder, LBC	View
B82144B2122K000	EPCOS (TDK), 1.2µH Unshielded Wirewound Inductor 4.25A 44mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2563J000	EPCOS (TDK), 56µH Unshielded Wirewound Inductor 1.6A 310mOhm Max Radial, Vertical Cylinder, LBC	View
B82144F2392K000	EPCOS (TDK), 3.9µH Unshielded Wirewound Inductor 3.35A 75mOhm Max Axial, LBC	View
B82144A2104J000	EPCOS (TDK), 100µH Unshielded Wirewound Inductor 600mA 700mOhm Max Axial, LBC	View
B82144B2102K000	EPCOS (TDK), 1µH Unshielded Wirewound Inductor 4.45A 43mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B1155J000	EPCOS (TDK), 1.5mH Unshielded Wirewound Inductor 230mA 6.4Ohm Max Radial, Vertical Cylinder, LBC	View
B82144F2474J000	EPCOS (TDK), 470µH Unshielded Wirewound Inductor 600mA 2.02Ohm Max Axial, LBC	View

B82144A2226J000

Part NumberB82144A2226J000
