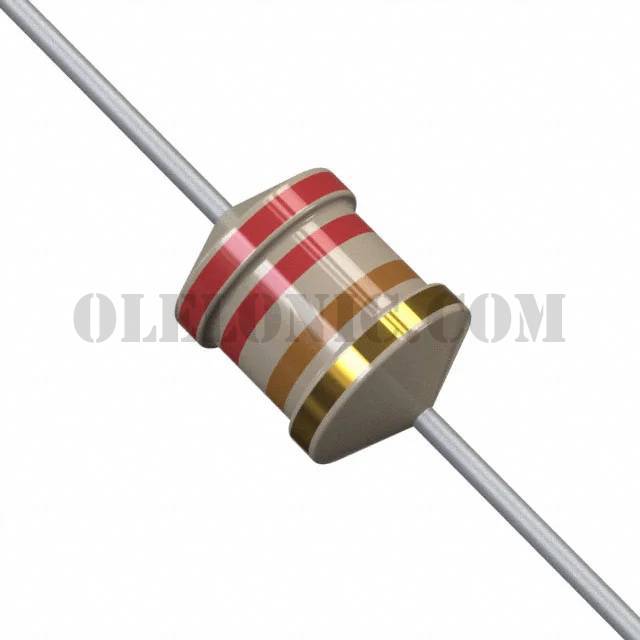

B82144F2224J000


B82144F2224J000

Part NumberB82144F2224J000

Manufacturer

Description

Datasheet

Package / CaseAxial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

B82144F2224J000 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1500
ManufacturerEPCOS (TDK)
SeriesLBC
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance220µH
Tolerance±5%
Current Rating (Amps)900mA
Current - Saturation650mA
ShieldingUnshielded
DC Resistance (DCR)1.01Ohm Max
Q @ Freq40 @ 79.6kHz
Frequency - Self Resonant3.6MHz
Ratings-
Operating Temperature-55°C ~ 125°C
Inductance Frequency - Test100kHz
Mounting TypeThrough Hole
Package / CaseAxial
Supplier Device PackageAxial
Size / Dimension0.256" Dia x 0.362" L (6.50mm x 9.20mm)
Height - Seated (Max)-
