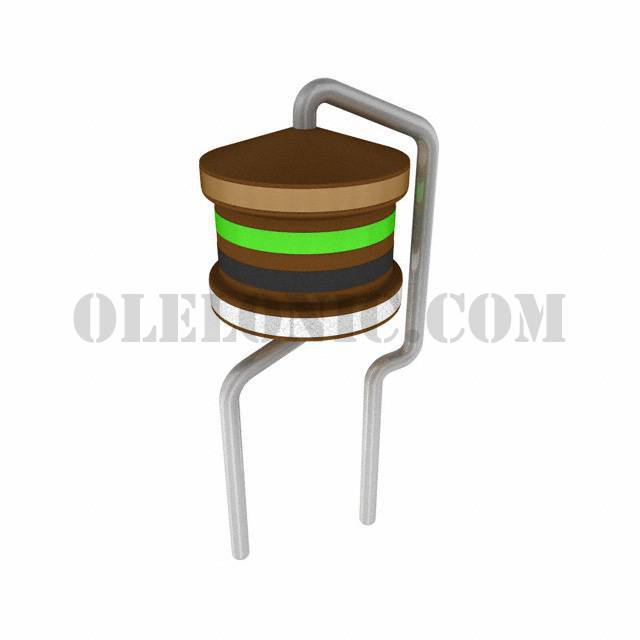

B82144B2153K000


B82144B2153K000

Part NumberB82144B2153K000

Manufacturer

Description

Datasheet

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

B82144B2153K000 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1000
ManufacturerEPCOS (TDK)
SeriesLBC
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance15µH
Tolerance±10%
Current Rating (Amps)2.3A
Current - Saturation2.4A
ShieldingUnshielded
DC Resistance (DCR)140mOhm Max
Q @ Freq50 @ 252kHz
Frequency - Self Resonant13MHz
Ratings-
Operating Temperature-55°C ~ 125°C
Inductance Frequency - Test100kHz
Mounting TypeThrough Hole
Package / CaseRadial, Vertical Cylinder
Supplier Device Package-
Size / Dimension0.256" Dia (6.50mm)
Height - Seated (Max)0.551" (14.00mm)
