B82144F2223K000
B82144F2223K000

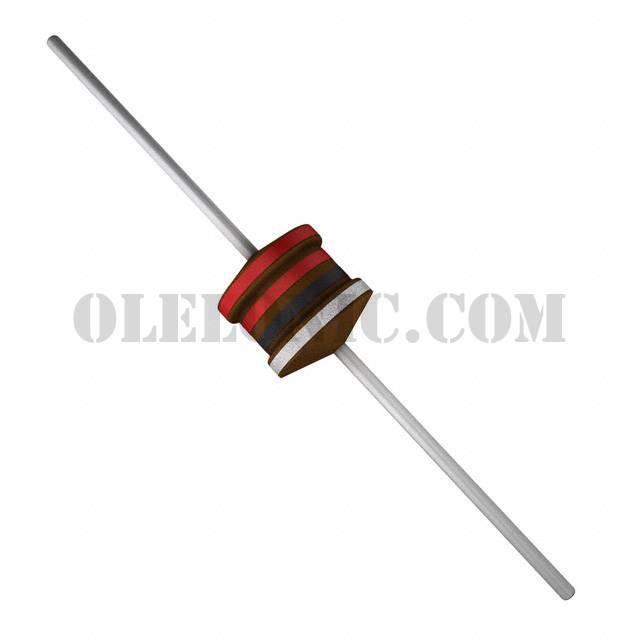

Part Number B82144F2223K000 Description FIXED IND 22UH 2.1A 175 MOHM TH Package / Case AxialUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 22µH Unshielded Wirewound Inductor 2.1A 175mOhm Max Axial
To learn about the specification of B82144F2223K000, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add B82144F2223K000 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of B82144F2223K000.
We are offering B82144F2223K000 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
B82144F2223K000 - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet B82144F2 Series Standard Package 1500 Manufacturer EPCOS (TDK) Series LBC Packaging Tape & Reel (TR) Part Status Active Type Wirewound Material - Core Ferrite Inductance 22µH Tolerance ±10% Current Rating (Amps) 2.1A Current - Saturation 2A Shielding Unshielded DC Resistance (DCR) 175mOhm Max Q @ Freq 50 @ 252kHz Frequency - Self Resonant 10MHz Ratings - Operating Temperature -55°C ~ 125°C Inductance Frequency - Test 100kHz Mounting Type Through Hole Package / Case Axial Supplier Device Package Axial Size / Dimension 0.256" Dia x 0.362" L (6.50mm x 9.20mm) Height - Seated (Max) -
