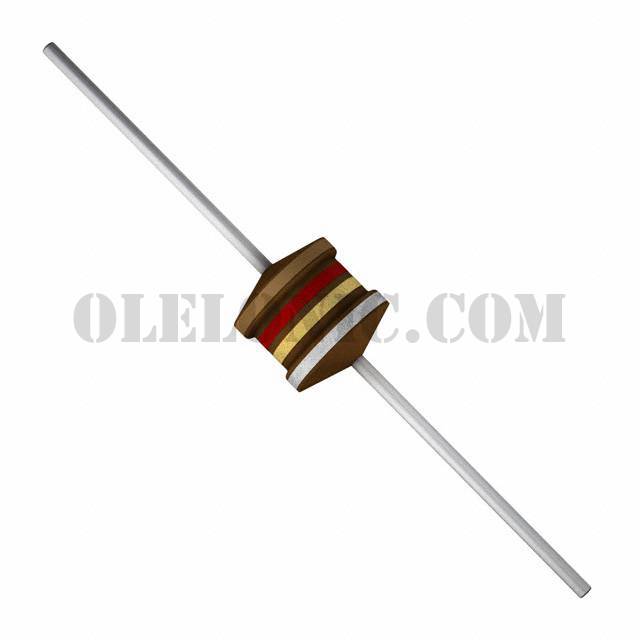

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	B82144F2 Series
Standard Package	1
Manufacturer	EPCOS (TDK)
Series	LBC
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	1.2µH
Tolerance	±10%
Current Rating (Amps)	4.25A
Current - Saturation	7.4A
Shielding	Unshielded
DC Resistance (DCR)	44mOhm Max
Q @ Freq	60 @ 2.52MHz
Frequency - Self Resonant	190MHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	1MHz
Mounting Type	Through Hole
Package / Case	Axial
Supplier Device Package	Axial
Size / Dimension	0.256" Dia x 0.362" L (6.50mm x 9.20mm)
Height - Seated (Max)	-

B82144F2123K000	EPCOS (TDK), 12µH Unshielded Wirewound Inductor 2.4A 130mOhm Max Axial, LBC	View
B82144B2103K000	EPCOS (TDK), 10µH Unshielded Wirewound Inductor 2.45A 120mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2152K000	EPCOS (TDK), 1.5µH Unshielded Wirewound Inductor 4.1A 45mOhm Max Radial, Vertical Cylinder, LBC	View
B82144A2476J000	EPCOS (TDK), 47mH Unshielded Wirewound Inductor 30mA 230Ohm Max Axial, LBC	View
B82144B2683J000	EPCOS (TDK), 68µH Unshielded Wirewound Inductor 1.5A 350mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2393J000	EPCOS (TDK), 39µH Unshielded Wirewound Inductor 1.75A 250mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2182K000	EPCOS (TDK), 1.8µH Unshielded Wirewound Inductor 3.75A 50mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2682K000	EPCOS (TDK), 6.8µH Unshielded Wirewound Inductor 2.75A 95mOhm Max Radial, Vertical Cylinder, LBC	View
B82144A2684J000	EPCOS (TDK), 680µH Unshielded Wirewound Inductor 240mA 2.8Ohm Max Axial, LBC	View
B82144F2224J000	EPCOS (TDK), 220µH Unshielded Wirewound Inductor 900mA 1.01Ohm Max Axial, LBC	View
B82144B2154J000	EPCOS (TDK), 150µH Unshielded Wirewound Inductor 1.05A 700mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2332K000	EPCOS (TDK), 3.3µH Unshielded Wirewound Inductor 3.5A 65mOhm Max Radial, Vertical Cylinder, LBC	View

B82144F2122K000

Part NumberB82144F2122K000
