Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	B82144B2 Series
Standard Package	1
Manufacturer	EPCOS (TDK)
Series	LBC
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	47µH
Tolerance	±5%
Current Rating (Amps)	1.7A
Current - Saturation	1.4A
Shielding	Unshielded
DC Resistance (DCR)	270mOhm Max
Q @ Freq	40 @ 252kHz
Frequency - Self Resonant	7.5MHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	100kHz

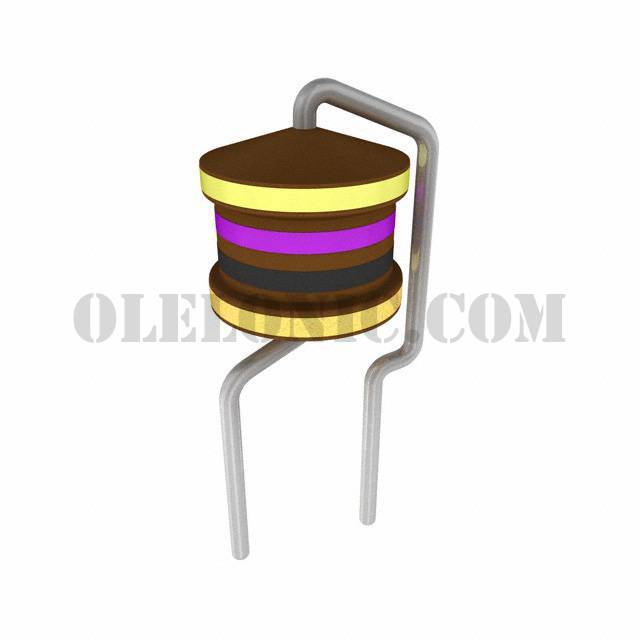

Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Supplier Device Package	-
Size / Dimension	0.256" Dia (6.50mm)
Height - Seated (Max)	0.551" (14.00mm)

B82144B2683J000	EPCOS (TDK), 68µH Unshielded Wirewound Inductor 1.5A 350mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B1335J000	EPCOS (TDK), 3.3mH Unshielded Wirewound Inductor 150mA 13.8Ohm Max Radial, Vertical Cylinder, LBC	View
B82144F2272K000	EPCOS (TDK), 2.7µH Unshielded Wirewound Inductor 3.55A 60mOhm Max Axial, LBC	View
B82144F2682K000	EPCOS (TDK), 6.8µH Unshielded Wirewound Inductor 2.75A 95mOhm Max Axial, LBC	View
B82144B2102K000	EPCOS (TDK), 1µH Unshielded Wirewound Inductor 4.45A 43mOhm Max Radial, Vertical Cylinder, LBC	View
B82144A2104J000	EPCOS (TDK), 100µH Unshielded Wirewound Inductor 600mA 700mOhm Max Axial, LBC	View
B82144B2563J000	EPCOS (TDK), 56µH Unshielded Wirewound Inductor 1.6A 310mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2392K000	EPCOS (TDK), 3.9µH Unshielded Wirewound Inductor 3.35A 75mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2123K000	EPCOS (TDK), 12µH Unshielded Wirewound Inductor 2.4A 130mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2223K000	EPCOS (TDK), 22µH Unshielded Wirewound Inductor 2.1A 175mOhm Max Radial, Vertical Cylinder, LBC	View
B82144F2822K000	EPCOS (TDK), 8.2µH Unshielded Wirewound Inductor 2.65A 105mOhm Max Axial, LBC	View
B82144A2472K000	EPCOS (TDK), 4.7µH Unshielded Wirewound Inductor 1.6A 160mOhm Max Axial, LBC	View

B82144B2473J000

Part NumberB82144B2473J000
