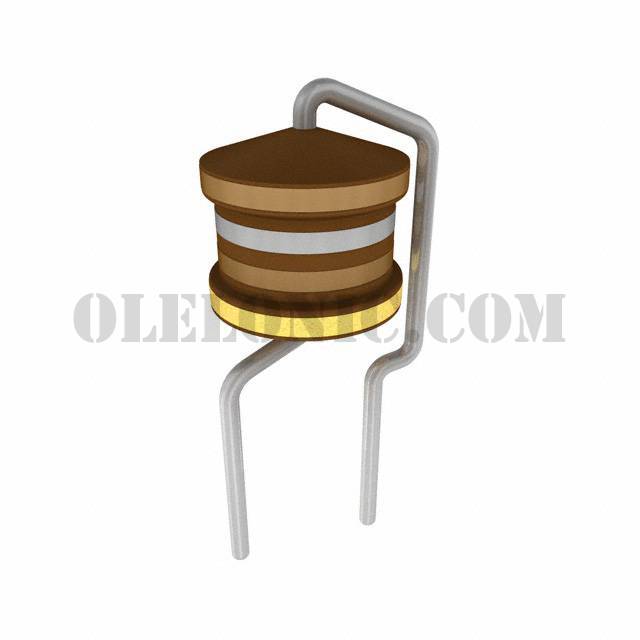

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	B82144B2 Series
Standard Package	1
Manufacturer	EPCOS (TDK)
Series	LBC
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	180µH
Tolerance	±5%
Current Rating (Amps)	950mA
Current - Saturation	720mA
Shielding	Unshielded
DC Resistance (DCR)	785mOhm Max
Q @ Freq	40 @ 79.6kHz
Frequency - Self Resonant	4MHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Supplier Device Package	-
Size / Dimension	0.256" Dia (6.50mm)
Height - Seated (Max)	0.551" (14.00mm)

B82144B2104J000	EPCOS (TDK), 100µH Unshielded Wirewound Inductor 1.3A 460mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2393J000	EPCOS (TDK), 39µH Unshielded Wirewound Inductor 1.75A 250mOhm Max Radial, Vertical Cylinder, LBC	View
B82144F2472K000	EPCOS (TDK), 4.7µH Unshielded Wirewound Inductor 3.05A 80mOhm Max Axial, LBC	View
B82144B2334J000	EPCOS (TDK), 330µH Unshielded Wirewound Inductor 700mA 1.53Ohm Max Radial, Vertical Cylinder, LBC	View
B82144F2184J000	EPCOS (TDK), 180µH Unshielded Wirewound Inductor 950mA 785mOhm Max Axial, LBC	View
B82144A2155J000	EPCOS (TDK), 1.5mH Unshielded Wirewound Inductor 160mA 6Ohm Max Axial, LBC	View
B82144B1225J000	EPCOS (TDK), 2.2mH Unshielded Wirewound Inductor 180mA 9.5Ohm Max Radial, Vertical Cylinder, LBC	View
B82144A2224J000	EPCOS (TDK), 220µH Unshielded Wirewound Inductor 400mA 1.6Ohm Max Axial, LBC	View
B82144B2394J000	EPCOS (TDK), 390µH Unshielded Wirewound Inductor 650mA 1.72Ohm Max Radial, Vertical Cylinder, LBC	View
B82144B2272K000	EPCOS (TDK), 2.7µH Unshielded Wirewound Inductor 3.55A 60mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2822K000	EPCOS (TDK), 8.2µH Unshielded Wirewound Inductor 2.65A 105mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2332K000	EPCOS (TDK), 3.3µH Unshielded Wirewound Inductor 3.5A 65mOhm Max Radial, Vertical Cylinder, LBC	View

B82144B2184J000

Part NumberB82144B2184J000
