Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	B82144A Series
Standard Package	1500
Manufacturer	EPCOS (TDK)
Series	LBC
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	22µH
Tolerance	±10%
Current Rating (Amps)	1.1A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	350mOhm Max
Q @ Freq	50 @ 2.52MHz
Frequency - Self Resonant	12MHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Through Hole
Package / Case	Axial
Supplier Device Package	-
Size / Dimension	0.205" Dia x 0.472" L (5.20mm x 12.00mm)
Height - Seated (Max)	-

B82144F1105J000	EPCOS (TDK), 1mH Unshielded Wirewound Inductor 280mA 4.2Ohm Max Axial, LBC	View
B82144A2474J000	EPCOS (TDK), 470µH Unshielded Wirewound Inductor 280mA 2.5Ohm Max Axial, LBC	View
B82144B2474J000	EPCOS (TDK), 470µH Unshielded Wirewound Inductor 600mA 2.02Ohm Max Radial, Vertical Cylinder, LBC	View
B82144F2473J000	EPCOS (TDK), 47µH Unshielded Wirewound Inductor 1.7A 270mOhm Max Axial, LBC	View
B82144F1105J000	EPCOS (TDK), 1mH Unshielded Wirewound Inductor 280mA 4.2Ohm Max Axial, LBC	View
B82144B2124J000	EPCOS (TDK), 120µH Unshielded Wirewound Inductor 1.1A 600mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2392K000	EPCOS (TDK), 3.9µH Unshielded Wirewound Inductor 3.35A 75mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2393J000	EPCOS (TDK), 39µH Unshielded Wirewound Inductor 1.75A 250mOhm Max Radial, Vertical Cylinder, LBC	View
B82144F2563J000	EPCOS (TDK), 56µH Unshielded Wirewound Inductor 1.6A 310mOhm Max Axial, LBC	View
B82144B2822K000	EPCOS (TDK), 8.2µH Unshielded Wirewound Inductor 2.65A 105mOhm Max Radial, Vertical Cylinder, LBC	View
B82144F2223K000	EPCOS (TDK), 22µH Unshielded Wirewound Inductor 2.1A 175mOhm Max Axial, LBC	View
B82144B2152K000	EPCOS (TDK), 1.5µH Unshielded Wirewound Inductor 4.1A 45mOhm Max Radial, Vertical Cylinder, LBC	View

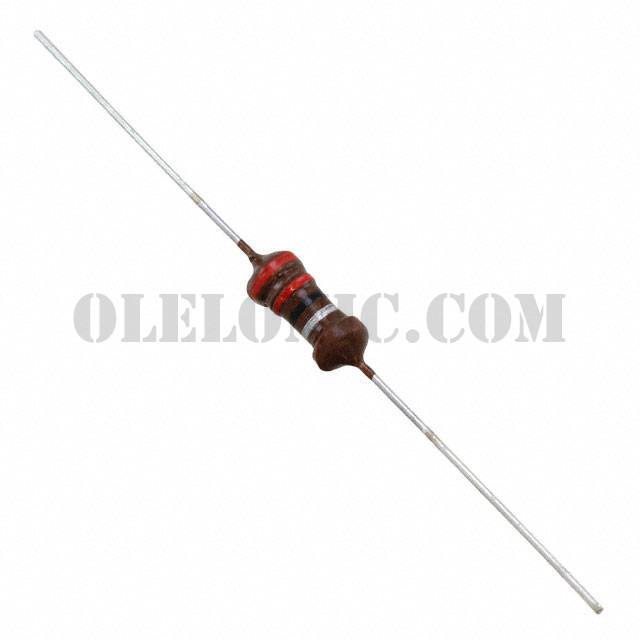

B82144A2223K000

Part NumberB82144A2223K000
