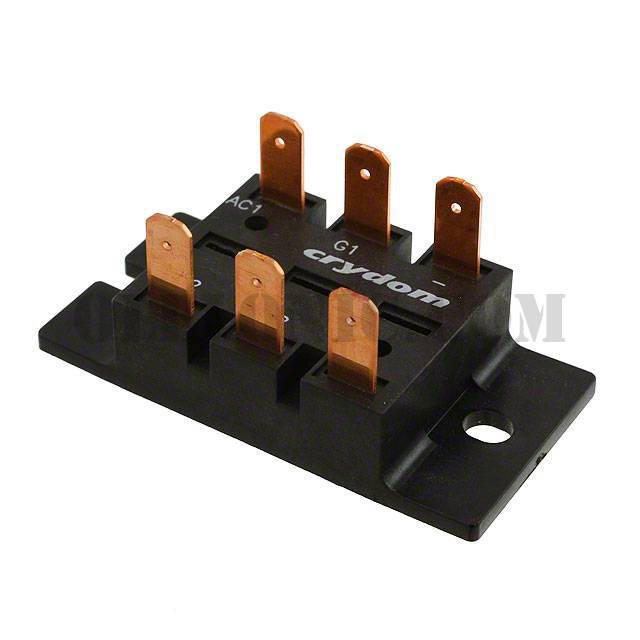

B614F-2T


B614F-2T

Part NumberB614F-2T

Manufacturer

Description

Datasheet

Package / CaseModule

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

B614F-2T - Product Attributes

Categories Discrete Semiconductor Products / Thyristors - SCRs - Modules
Datasheet
Standard Package20
ManufacturerSensata-Crydom
Series-
PackagingBulk
Part StatusActive
StructureBridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes2 SCRs, 2 Diodes
Voltage - Off State1.2kV
Voltage - Gate Trigger (Vgt) (Max)3V
Current - Gate Trigger (Igt) (Max)80mA
Current - Non Rep. Surge 50, 60Hz (Itsm)600A @ 60Hz
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
