Categories	Capacitors / Film Capacitors
Datasheet	B32774,76,78 Series
Standard Package	27
Manufacturer	EPCOS (TDK)

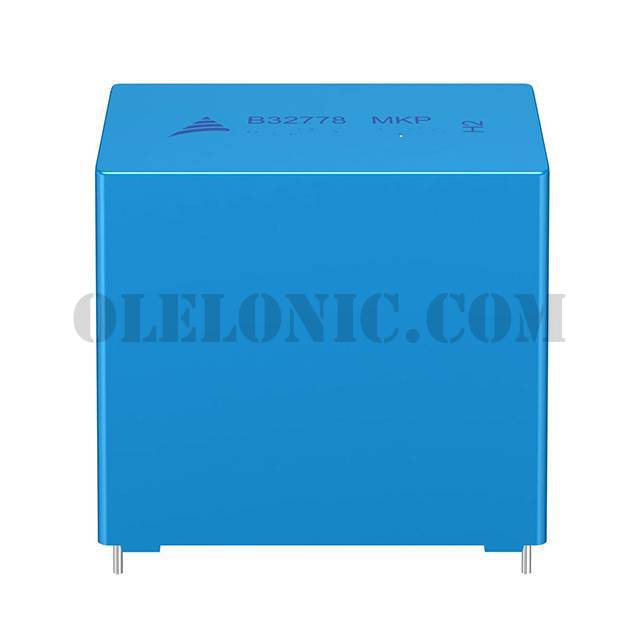

Series	B32778
Packaging	Bulk
Part Status	Active
Capacitance	50µF
Tolerance	±10%
Voltage Rating - AC	-
Voltage Rating - DC	900V
Dielectric Material	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance)	5.6 mOhms
Operating Temperature	-40°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial - 4 Leads
Size / Dimension	2.264" L x 1.378" W (57.50mm x 35.00mm)
Height - Seated (Max)	1.969" (50.00mm)
Termination	PC Pins
Lead Spacing	2.067" (52.50mm)
Applications	DC Link, DC Filtering
Ratings	-
Features	Long Life
