ASMPH-0806-2R2M-T
ASMPH-0806-2R2M-T

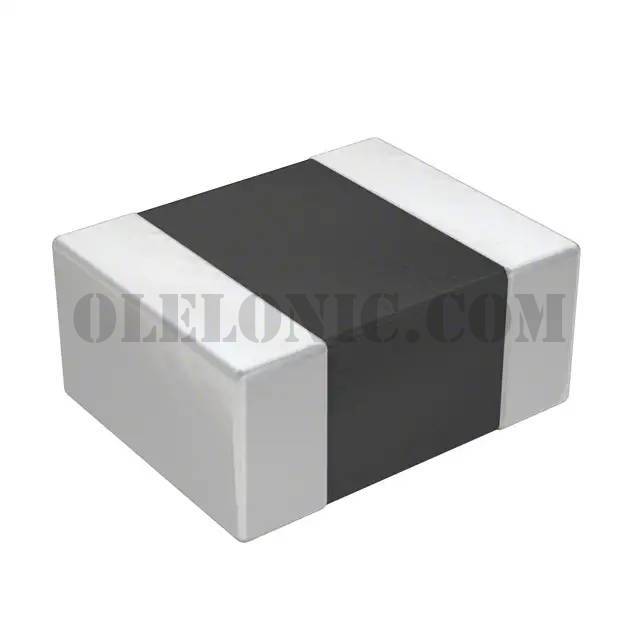

Part Number ASMPH-0806-2R2M-T Description FIXED IND 2.2UH 1.2A 110 MOHM Package / Case 0806 (2016 Metric)Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description 2.2µH Shielded Multilayer Inductor 1.2A 110mOhm 0806 (2016 Metric)
To learn about the specification of ASMPH-0806-2R2M-T, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ASMPH-0806-2R2M-T with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ASMPH-0806-2R2M-T.
We are offering ASMPH-0806-2R2M-T for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
ASMPH-0806-2R2M-T - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet ASMPH-0806 Standard Package 3000 Manufacturer Abracon LLC Series ASMPH-0806 Packaging Tape & Reel (TR) Part Status Active Type Multilayer Material - Core Ferrite Inductance 2.2µH Tolerance ±20% Current Rating (Amps) 1.2A Current - Saturation 500mA Shielding Shielded DC Resistance (DCR) 110mOhm Q @ Freq - Frequency - Self Resonant 50MHz Ratings - Operating Temperature -40°C ~ 85°C Inductance Frequency - Test 1MHz Mounting Type Surface Mount Package / Case 0806 (2016 Metric) Supplier Device Package 0806 (2016 Metric) Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm) Height - Seated (Max) 0.039" (1.00mm)
