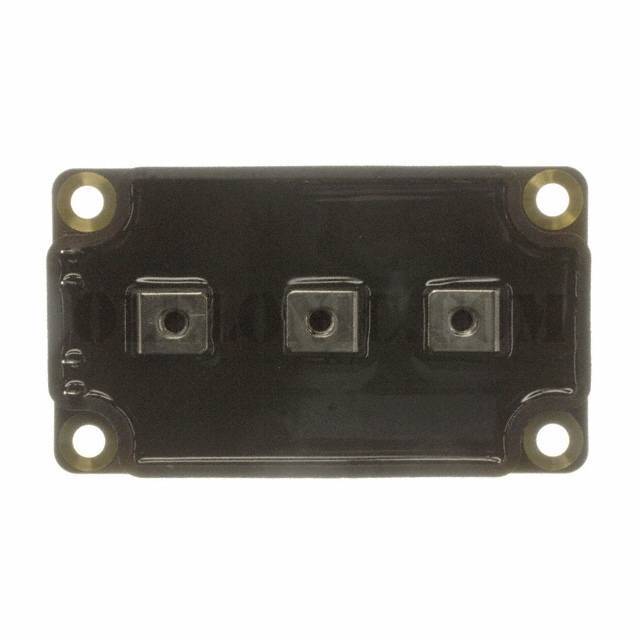

APTM20AM04FG

Part NumberAPTM20AM04FG

ManufacturerMicrosemi Corporation

DescriptionMOSFET 2N-CH 200V 372A SP6

DatasheetAPTM20AM04FG

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Half Bridge) 200V 372A 1250W Chassis Mount SP6

To learn about the specification of APTM20AM04FG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTM20AM04FG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTM20AM04FG.
We are offering APTM20AM04FG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTM20AM04FG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	APTM20AM04FG
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Packaging	Bulk
Part Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	Standard
Drain to Source Voltage (Vdss)	200V
Current - Continuous Drain (Id) @ 25°C	372A
Rds On (Max) @ Id, Vgs	5mOhm @ 186A, 10V
Vgs(th) (Max) @ Id	5V @ 10mA
Gate Charge (Qg) (Max) @ Vgs	560nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	28900pF @ 25V
Power - Max	1250W
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	SP6
Supplier Device Package	SP6
