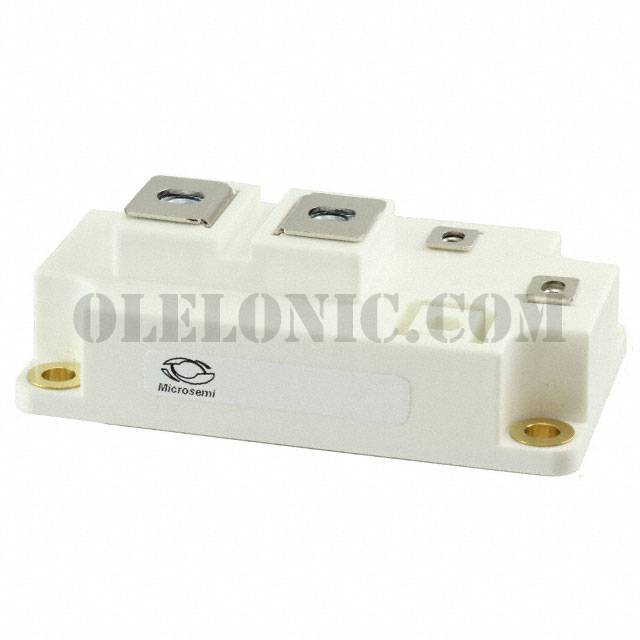

APTGT600U120D4G

APTGT600U120D4G

Part NumberAPTGT600U120D4G

ManufacturerMicrosemi Corporation

DescriptionIGBT 1200V 900A 2500W D4

DatasheetAPTGT600U120D4G

Package / CaseD4

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Single 1200V 900A 2500W Chassis Mount D4

To learn about the specification of APTGT600U120D4G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGT600U120D4G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGT600U120D4G.
We are offering APTGT600U120D4G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGT600U120D4G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - IGBTs - Modules
Datasheet	APTGT600U120D4G
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Part Status	Active
IGBT Type	Trench Field Stop
Configuration	Single
Voltage - Collector Emitter Breakdown (Max)	1200V
Current - Collector (Ic) (Max)	900A
Power - Max	2500W
Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 600A
Current - Collector Cutoff (Max)	5mA
Input Capacitance (Cies) @ Vce	40nF @ 25V
Input	Standard
NTC Thermistor	No
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	D4
Supplier Device Package	D4

APTGT600U120D4G - Related Products

	APTGL475U120D4G	Microsemi Corporation, IGBT Module Trench Field Stop Single 1200V 610A 2082W Chassis Mount D4,	View
	APTGT600U120D4G	Microsemi Corporation, IGBT Module Trench Field Stop Single 1200V 900A 2500W Chassis Mount D4,	View
	APTGT600U170D4G	Microsemi Corporation, IGBT Module Trench Field Stop Single 1700V 1100A 2900W Chassis Mount D4,	View
