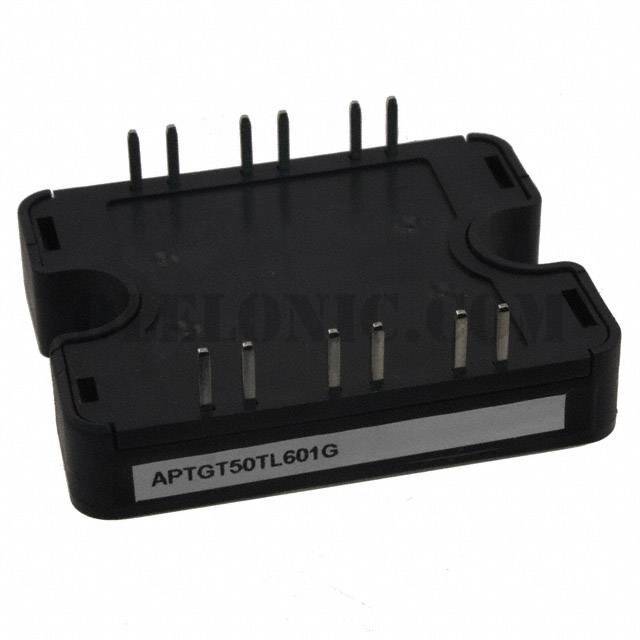

APTGT50TL601G

APTGT50TL601G

Part NumberAPTGT50TL601G

ManufacturerMicrosemi Corporation

DescriptionPOWER MODULE IGBT 600V 50A SP1

DatasheetAPTGT50TL601G

Package / CaseSP1

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Three Level Inverter 600V 80A 176W Chassis Mount SP1

To learn about the specification of APTGT50TL601G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGT50TL601G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGT50TL601G.
We are offering APTGT50TL601G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGT50TL601G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - IGBTs - Modules
Datasheet	APTGT50TL601G
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Part Status	Active
IGBT Type	Trench Field Stop
Configuration	Three Level Inverter
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	80A
Power - Max	176W
Vce(on) (Max) @ Vge, Ic	1.9V @ 15V, 50A
Current - Collector Cutoff (Max)	250µA
Input Capacitance (Cies) @ Vce	3.15nF @ 25V
Input	Standard
NTC Thermistor	No
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Chassis Mount
Package / Case	SP1
Supplier Device Package	SP1
