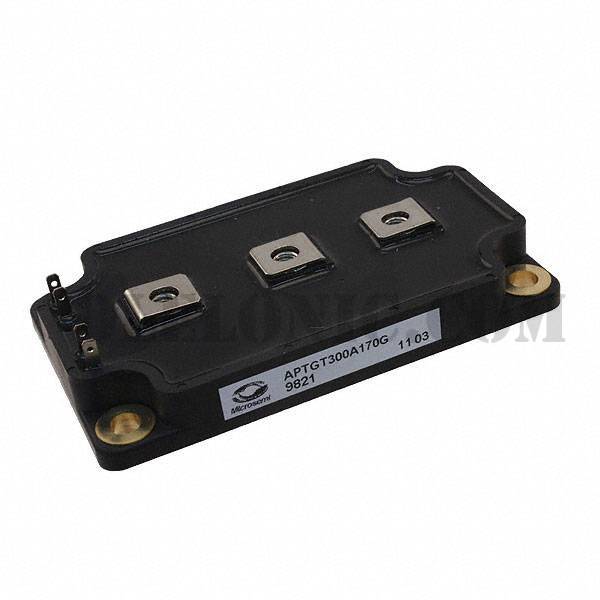

APTGT300A170G

APTGT300A170G

Part NumberAPTGT300A170G

ManufacturerMicrosemi Corporation

DescriptionIGBT PHASE TRENCH FIELD STOP SP6

DatasheetAPTGT300A170G

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Half Bridge 1700V 400A 1660W Chassis Mount SP6

To learn about the specification of APTGT300A170G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGT300A170G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGT300A170G.
We are offering APTGT300A170G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGT300A170G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - IGBTs - Modules
Datasheet	APTGT300A170G
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Part Status	Active
IGBT Type	Trench Field Stop
Configuration	Half Bridge
Voltage - Collector Emitter Breakdown (Max)	1700V
Current - Collector (Ic) (Max)	400A
Power - Max	1660W
Vce(on) (Max) @ Vge, Ic	2.4V @ 15V, 300A
Current - Collector Cutoff (Max)	750µA
Input Capacitance (Cies) @ Vce	26.5nF @ 25V
Input	Standard
NTC Thermistor	No
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	SP6
Supplier Device Package	SP6
