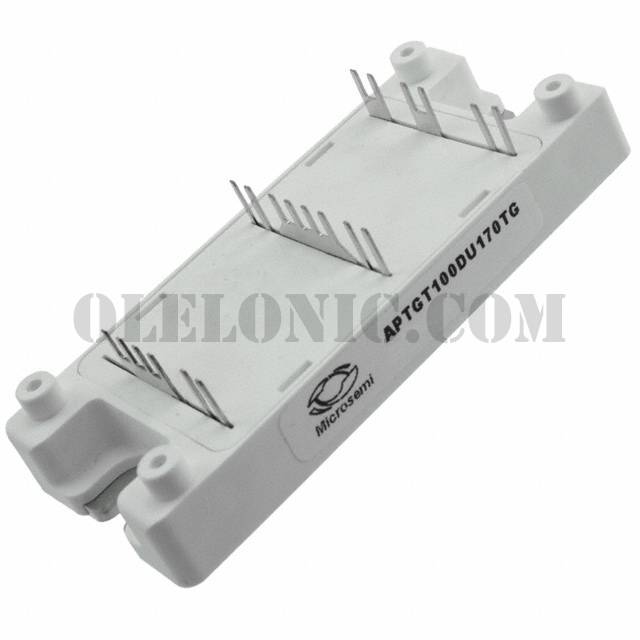

APTGT100DU170TG

APTGT100DU170TG

Part NumberAPTGT100DU170TG

ManufacturerMicrosemi Corporation

DescriptionIGBT DUAL SOURCE 1700V 150A SP4

DatasheetAPTGT100DU170TG

Package / CaseSP4

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Dual, Common Source 1700V 150A 560W Chassis Mount SP4

To learn about the specification of APTGT100DU170TG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGT100DU170TG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGT100DU170TG.
We are offering APTGT100DU170TG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGT100DU170TG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - IGBTs - Modules
Datasheet	APTGT100DU170TG
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Part Status	Active
IGBT Type	Trench Field Stop
Configuration	Dual, Common Source
Voltage - Collector Emitter Breakdown (Max)	1700V
Current - Collector (Ic) (Max)	150A
Power - Max	560W
Vce(on) (Max) @ Vge, Ic	2.4V @ 15V, 100A
Current - Collector Cutoff (Max)	250µA
Input Capacitance (Cies) @ Vce	9nF @ 25V
Input	Standard
NTC Thermistor	Yes
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	SP4
Supplier Device Package	SP4
