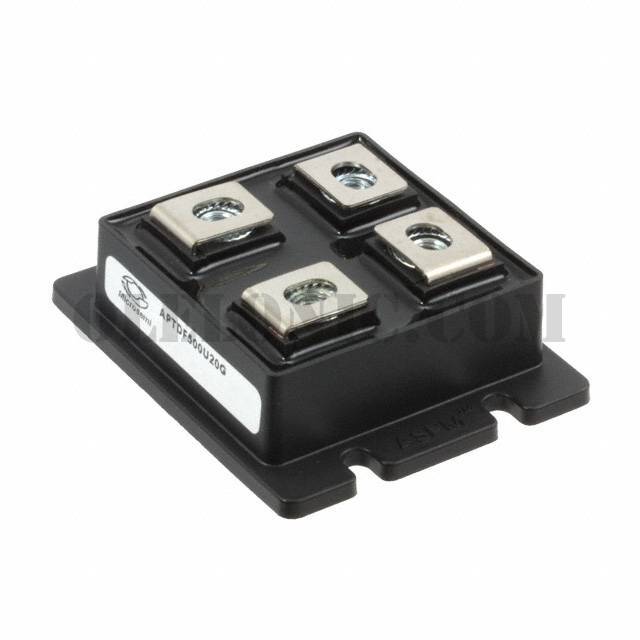

APTDF500U20G

APTDF500U20G

Part NumberAPTDF500U20G

ManufacturerMicrosemi Corporation

DescriptionDIODE GEN PURP 200V 500A LP4

DatasheetAPTDF500U20G

Package / CaseLP4

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 200V 500A Chassis Mount LP4

To learn about the specification of APTDF500U20G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTDF500U20G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTDF500U20G.
We are offering APTDF500U20G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTDF500U20G - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	APTDF500U20G
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io)	500A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 500A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	70ns
Current - Reverse Leakage @ Vr	2.5mA @ 200V
Capacitance @ Vr, F	-
Mounting Type	Chassis Mount
Package / Case	LP4
Supplier Device Package	LP4
