Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	ACGRKM4001-HF thru 4007-HF
Standard Package	1
Manufacturer	Comchip Technology
Series	Automotive, AEC-Q101
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1000V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	5µA @ 1000V
Capacitance @ Vr, F	15pF @ 4V, 1MHz
Mounting Type	Surface Mount

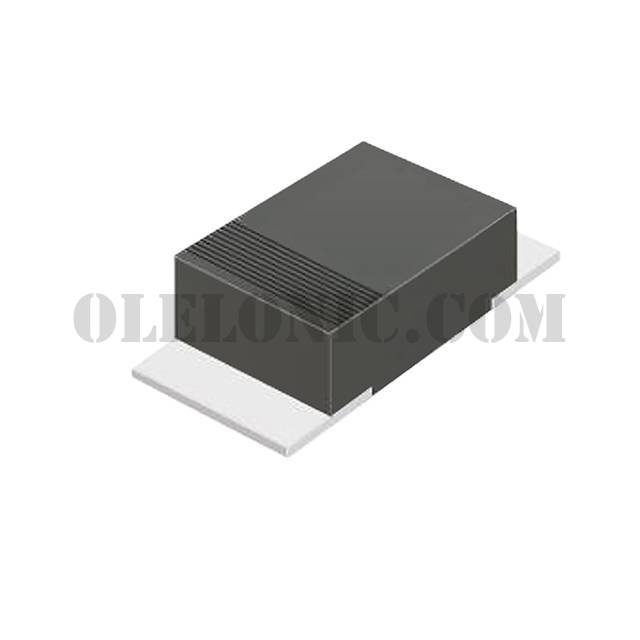

Package / Case	SOD-123T
Supplier Device Package	KM/SOD-123F
Operating Temperature - Junction	-55°C ~ 150°C
