RGW00TK65DGVC11
RGW00TK65DGVC11

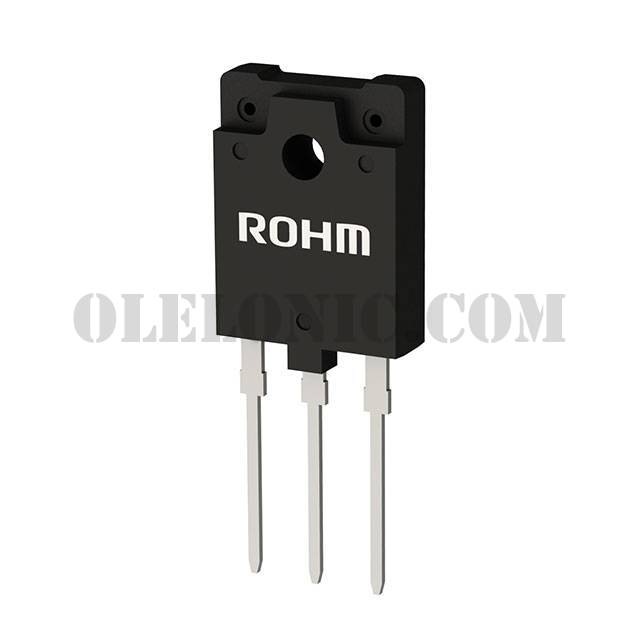

Part Number RGW00TK65DGVC11
Description 650V 50A FIELD STOP TRENCH IGBT
Package / Case TO-3PFM, SC-93-3
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description IGBT Trench Field Stop 650V 45A 89W Through Hole TO-3PFM
To learn about the specification of RGW00TK65DGVC11, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RGW00TK65DGVC11 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RGW00TK65DGVC11.
We are offering RGW00TK65DGVC11 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
RGW00TK65DGVC11 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet RGW00TK65D
Standard Package 450
Manufacturer Rohm Semiconductor
Series -
Part Status Active
IGBT Type Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) 650V
Current - Collector (Ic) (Max) 45A
Current - Collector Pulsed (Icm) 200A
Vce(on) (Max) @ Vge, Ic 1.9V @ 15V, 50A
Power - Max 89W
Switching Energy 1.18mJ (on), 960µJ (off)
Input Type Standard
Gate Charge 141nC
Td (on/off) @ 25°C 52ns/180ns
Test Condition 400V, 50A, 10Ohm, 15V
Reverse Recovery Time (trr) 95ns
Operating Temperature -40°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case TO-3PFM, SC-93-3
Supplier Device Package TO-3PFM
