APT45GP120B2DQ2G
APT45GP120B2DQ2G
Part Number APT45GP120B2DQ2G

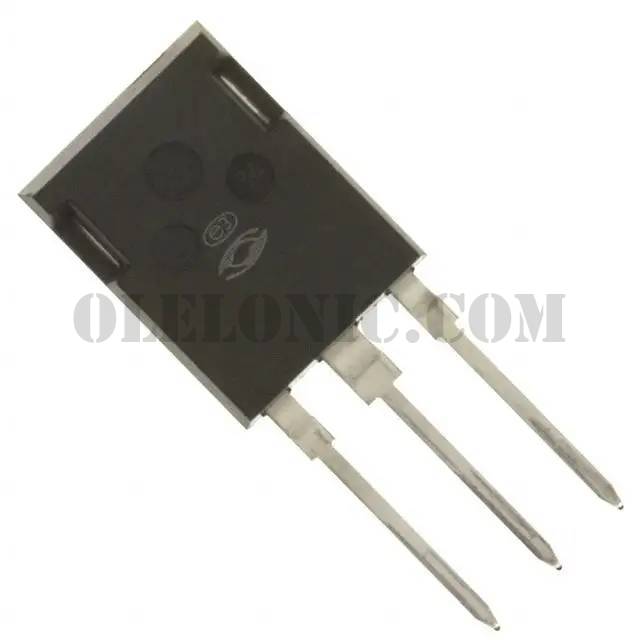

Description IGBT 1200V 113A 625W TMAX
Package / Case TO-247-3 Variant
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description IGBT PT 1200V 113A 625W Through Hole
To learn about the specification of APT45GP120B2DQ2G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APT45GP120B2DQ2G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APT45GP120B2DQ2G.
We are offering APT45GP120B2DQ2G for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
APT45GP120B2DQ2G - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet APT45GP120B2DQ2(G)
Standard Package 1
Manufacturer Microsemi Corporation
Series POWER MOS 7®
Packaging Tube
Part Status Active
IGBT Type PT
Voltage - Collector Emitter Breakdown (Max) 1200V
Current - Collector (Ic) (Max) 113A
Current - Collector Pulsed (Icm) 170A
Vce(on) (Max) @ Vge, Ic 3.9V @ 15V, 45A
Power - Max 625W
Switching Energy 900µJ (on), 905µJ (off)
Input Type Standard
Gate Charge 185nC
Td (on/off) @ 25°C 18ns/100ns
Test Condition 600V, 45A, 5Ohm, 15V
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-247-3 Variant
