AOTF66616L

AOTF66616L

Part NumberAOTF66616L

ManufacturerAlpha & Omega Semiconductor Inc.

Description60V N-CHANNEL ALPHASGT TM

DatasheetAOTF66616L

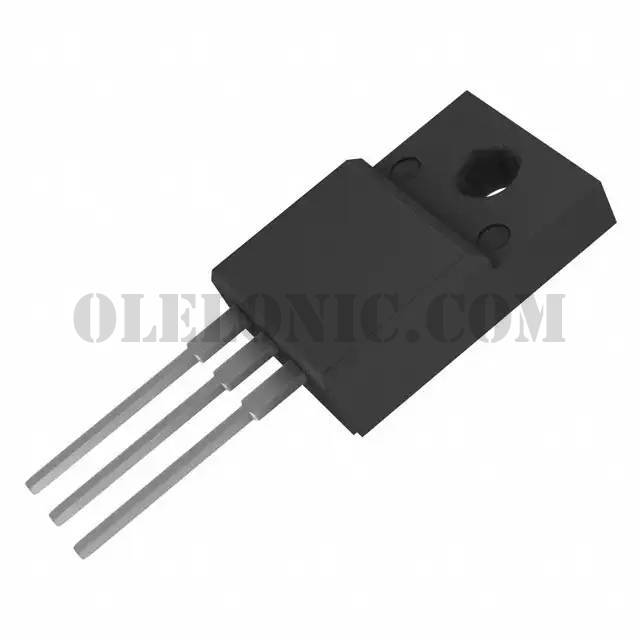

Package / CaseTO-220-3 Full Pack

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 60V 38A (Ta), 72.5A (Tc) 8.3W (Ta), 30W (Tc) Through Hole TO-220F

To learn about the specification of AOTF66616L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AOTF66616L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AOTF66616L.
We are offering AOTF66616L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AOTF66616L - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	AOTF66616L
Standard Package	50
Manufacturer	Alpha & Omega Semiconductor Inc.
Series	AlphaSGT™
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	38A (Ta), 72.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	3.3mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	3.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	60nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2870pF @ 30V
FET Feature	-
Power Dissipation (Max)	8.3W (Ta), 30W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220F
Package / Case	TO-220-3 Full Pack
