Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet AONY36354
Standard Package 1
Manufacturer Alpha & Omega Semiconductor Inc.
Series -
Packaging Cut Tape (CT)
Part Status Active
FET Type 2 N-Channel (Dual) Asymmetrical
FET Feature Standard
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25°C 18.5A (Ta), 49A (Tc), 27A (Ta), 85A (Tc)
Rds On (Max) @ Id, Vgs 5.3mOhm @ 20A, 10V, 2.6mOhm @ 20A, 10V
Vgs(th) (Max) @ Id 2.1V @ 250µA, 1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 20nC @ 10V, 40nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds 820pF @ 15V, 1890pF @ 15V
Power - Max 3.1W (Ta), 21W (Tc), 3.1W (Ta), 31.5W (Tc)
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount

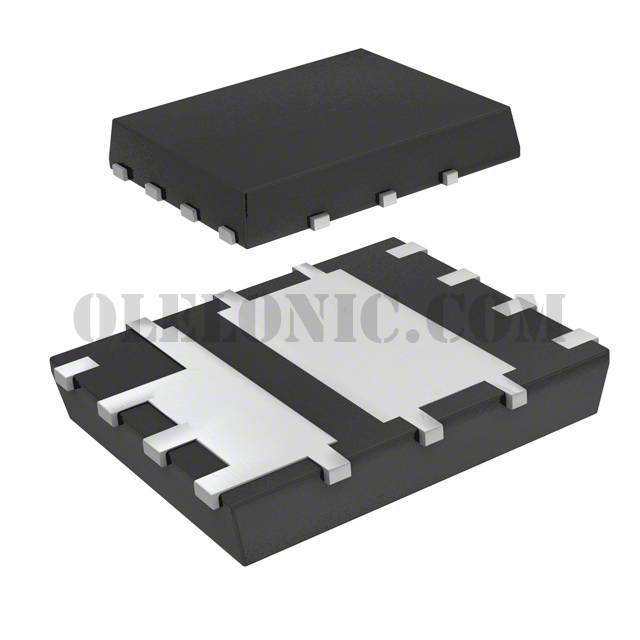

Package / Case 8-PowerSMD, Flat Leads
Supplier Device Package 8-DFN (5x6)
