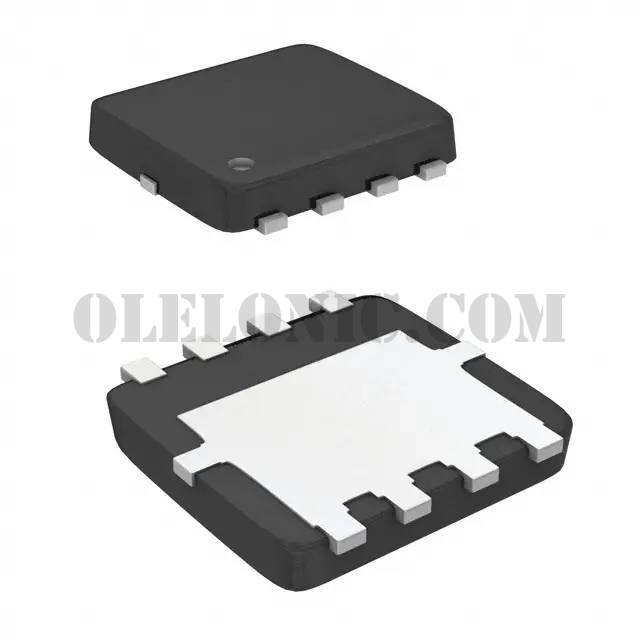

AON7410

AON7410

Part NumberAON7410

ManufacturerAlpha & Omega Semiconductor Inc.

DescriptionMOSFET N-CH 30V 9.5A 8DFN

DatasheetAON7410

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 9.5A (Ta), 24A (Tc) 3.1W (Ta), 20W (Tc) Surface Mount 8-DFN (3x3)

To learn about the specification of AON7410, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AON7410 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AON7410.
We are offering AON7410 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AON7410 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	AON7410
Standard Package	5000
Manufacturer	Alpha & Omega Semiconductor Inc.
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	9.5A (Ta), 24A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	20mOhm @ 8A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	12nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	660pF @ 15V
FET Feature	-
Power Dissipation (Max)	3.1W (Ta), 20W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DFN (3x3)
Package / Case	8-PowerVDFN
