AOD609

AOD609

Part NumberAOD609

ManufacturerAlpha & Omega Semiconductor Inc.

DescriptionMOSFET N/P-CH 40V 12A TO252-4

DatasheetAOD609

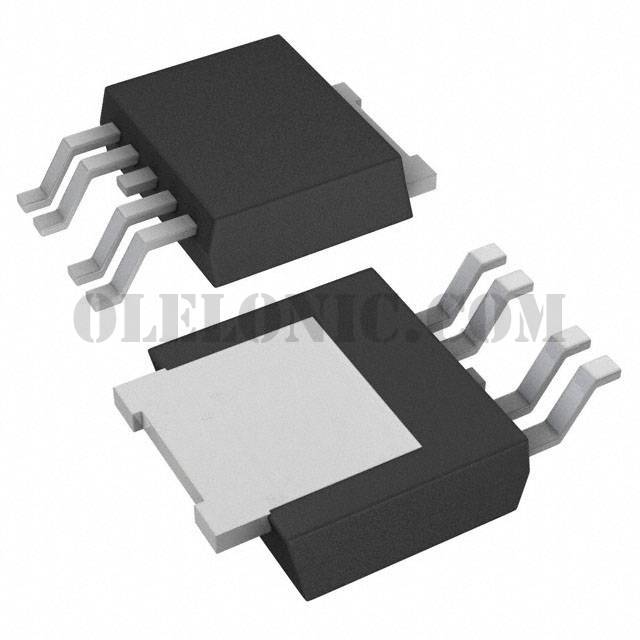

Package / CaseTO-252-5, DPak (4 Leads + Tab), TO-252AD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array N and P-Channel, Common Drain 40V 12A 2W Surface Mount TO-252-4L

To learn about the specification of AOD609, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AOD609 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AOD609.
We are offering AOD609 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AOD609 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	AOD609
Standard Package	1
Manufacturer	Alpha & Omega Semiconductor Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N and P-Channel, Common Drain
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	12A
Rds On (Max) @ Id, Vgs	30mOhm @ 12A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	10.8nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	650pF @ 20V
Power - Max	2W
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-252-5, DPak (4 Leads + Tab), TO-252AD
Supplier Device Package	TO-252-4L
