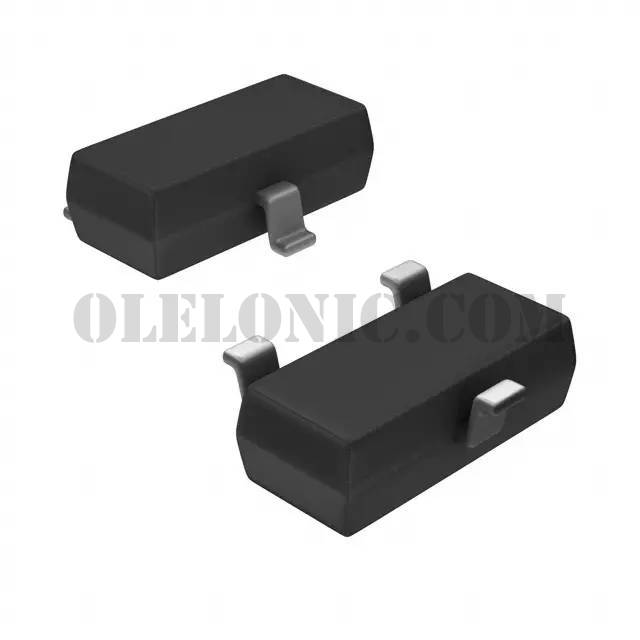

AO7400

AO7400

Part NumberAO7400

ManufacturerAlpha & Omega Semiconductor Inc.

DescriptionMOSFET N-CH 30V 1.7A SC70-3

DatasheetAO7400

Package / CaseSC-70, SOT-323

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 1.7A (Ta) 350mW (Ta) Surface Mount SC-70-3

To learn about the specification of AO7400, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AO7400 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AO7400.
We are offering AO7400 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AO7400 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	AO7400
Standard Package	1
Manufacturer	Alpha & Omega Semiconductor Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	1.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 10V
Rds On (Max) @ Id, Vgs	85mOhm @ 1.5A, 10V
Vgs(th) (Max) @ Id	1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	4.82nC @ 4.5V
Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	390pF @ 15V
FET Feature	-
Power Dissipation (Max)	350mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SC-70-3
Package / Case	SC-70, SOT-323
