AO4476A

AO4476A

Part NumberAO4476A

ManufacturerAlpha & Omega Semiconductor Inc.

DescriptionMOSFET N-CH 30V 15A 8-SOIC

DatasheetAO4476A Datasheet

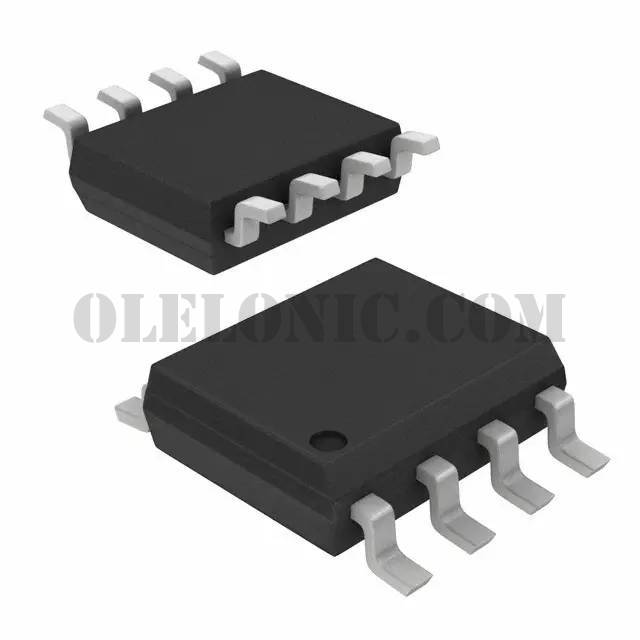

Package / Case8-SOIC (0.154", 3.90mm Width)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 15A (Ta) 3.1W (Ta) Surface Mount 8-SO

To learn about the specification of AO4476A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AO4476A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AO4476A.
We are offering AO4476A for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AO4476A - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	AO4476A Datasheet
Standard Package	3000
Manufacturer	Alpha & Omega Semiconductor Inc.
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	15A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	7.7mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	24nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1380pF @ 15V
FET Feature	-
Power Dissipation (Max)	3.1W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-SO
Package / Case	8-SOIC (0.154", 3.90mm Width)
