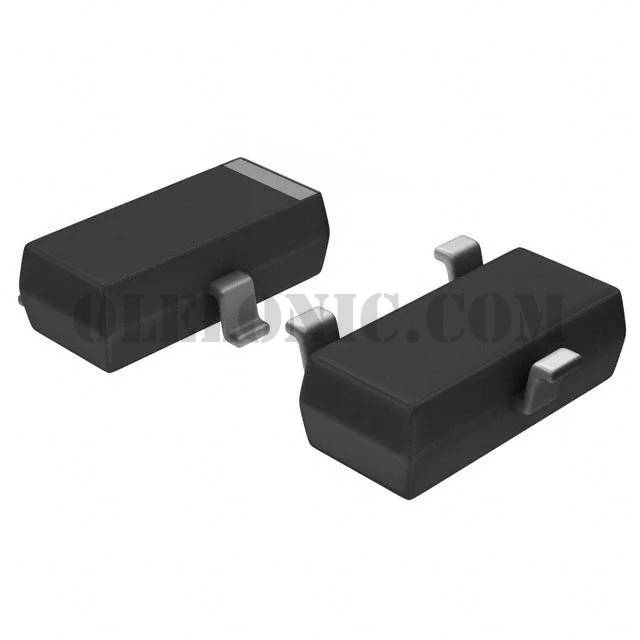

AO3413

AO3413

Part NumberAO3413

ManufacturerAlpha & Omega Semiconductor Inc.

DescriptionMOSFET P-CH 20V 3A SOT23

DatasheetAO3413

Package / CaseTO-236-3, SC-59, SOT-23-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 3A (Ta) 1.4W (Ta) Surface Mount SOT-23-3L

To learn about the specification of AO3413, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AO3413 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AO3413.
We are offering AO3413 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AO3413 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	AO3413
Standard Package	3000
Manufacturer	Alpha & Omega Semiconductor Inc.
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	97mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6.1nC @ 4.5V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	540pF @ 10V
FET Feature	-
Power Dissipation (Max)	1.4W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-3L
Package / Case	TO-236-3, SC-59, SOT-23-3
