Categories	Capacitors / Trimmers, Variable Capacitors
Datasheet	Trimmers Catalog
Standard Package	50
Manufacturer	Knowles Voltronics
Series	-
Packaging	Bulk
Part Status	Active
Capacitance Range	1 ~ 23pF
Adjustment Type	Top
Voltage - Rated	125V
Dielectric Material	Polytetrafluoroethylene (PTFE)
Q @ Freq	2000 @ 100MHz
Size / Dimension	0.250" Dia (6.35mm)
Height - Seated (Max)	0.480" (12.19mm)
Operating Temperature	-65°C ~ 125°C
Mounting Type	Surface Mount
Features	General Purpose

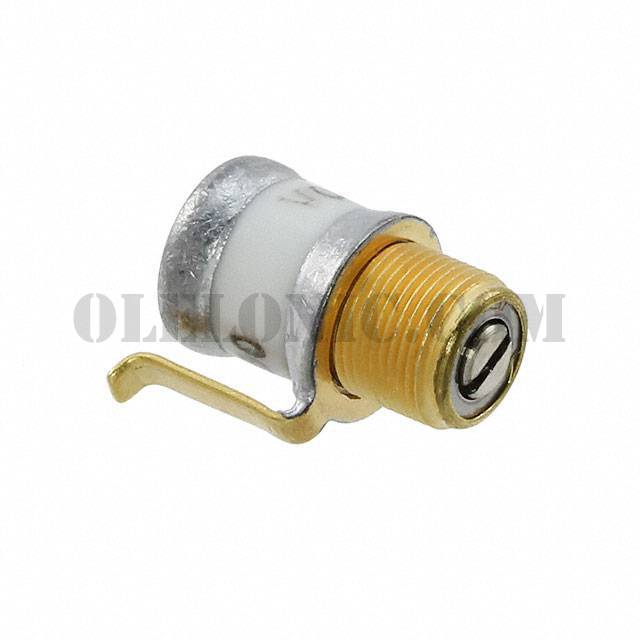

AM25SD	Knowles Voltronics, 1 ~ 23pF Trimmer Capacitor 125V Top Surface Mount,	View
AT15HV	Knowles Voltronics, 1 ~ 16pF Trimmer Capacitor 1000V Top Panel Mount,	View
A1M4	Knowles Voltronics, 0.45 ~ 4pF Trimmer Capacitor 250V Top Surface Mount,	View
A4W3HV	Knowles Voltronics, 0.45 ~ 3pF Trimmer Capacitor 500V Top Surface Mount,	View
A1J8	Knowles Voltronics, 0.5 ~ 8pF Trimmer Capacitor 125V Side Surface Mount,	View
AF25HV	Knowles Voltronics, 1 ~ 23pF Trimmer Capacitor 750V Top Through Hole,	View
A1M8HV	Knowles Voltronics, 0.5 ~ 8pF Trimmer Capacitor 500V Top Surface Mount,	View
AF10HV	Knowles Voltronics, 1 ~ 10pF Trimmer Capacitor 1000V Top Through Hole,	View
AF4HV	Knowles Voltronics, 1 ~ 4pF Trimmer Capacitor 1000V Top Through Hole,	View
AP14	Knowles Voltronics, 1 ~ 14pF Trimmer Capacitor 125V Side Through Hole,	View
AP10	Knowles Voltronics, 1 ~ 10pF Trimmer Capacitor 250V Side Through Hole,	View
AM14	Knowles Voltronics, 1 ~ 14pF Trimmer Capacitor 125V Top Surface Mount,	View

AM25SD

Part NumberAM25SD
