Categories	Capacitors / Trimmers, Variable Capacitors
Datasheet	Trimmers Catalog
Standard Package	50
Manufacturer	Knowles Voltronics
Series	-
Packaging	Bulk
Part Status	Active
Capacitance Range	1 ~ 16pF
Adjustment Type	Side
Voltage - Rated	1000V
Dielectric Material	Polytetrafluoroethylene (PTFE)
Q @ Freq	2000 @ 100MHz
Size / Dimension	0.250" Dia (6.35mm)
Height - Seated (Max)	0.500" (12.70mm)
Operating Temperature	-65°C ~ 125°C
Mounting Type	Surface Mount
Features	General Purpose

AJ15HV	Knowles Voltronics, 1 ~ 16pF Trimmer Capacitor 1000V Side Surface Mount,	View
AF25HV	Knowles Voltronics, 1 ~ 23pF Trimmer Capacitor 750V Top Through Hole,	View
A1J8	Knowles Voltronics, 0.5 ~ 8pF Trimmer Capacitor 125V Side Surface Mount,	View
AM25SD	Knowles Voltronics, 1 ~ 23pF Trimmer Capacitor 125V Top Surface Mount,	View
AT10-4	Knowles Voltronics, 0.8 ~ 10pF Trimmer Capacitor 2000V Top Panel Mount,	View
A1J4	Knowles Voltronics, 0.45 ~ 4pF Trimmer Capacitor 250V Side Surface Mount,	View
AJ25HV	Knowles Voltronics, 1 ~ 23pF Trimmer Capacitor 750V Side Surface Mount,	View
AP40HV	Knowles Voltronics, 1.5 ~ 40pF Trimmer Capacitor 1000V Side Through Hole,	View
AT25HV	Knowles Voltronics, 1 ~ 23pF Trimmer Capacitor 750V Top Panel Mount,	View
AT15HV	Knowles Voltronics, 1 ~ 16pF Trimmer Capacitor 1000V Top Panel Mount,	View
AT14	Knowles Voltronics, 1 ~ 14pF Trimmer Capacitor 125V Top Panel Mount,	View
AP10HV	Knowles Voltronics, 1 ~ 10pF Trimmer Capacitor 1000V Side Through Hole,	View

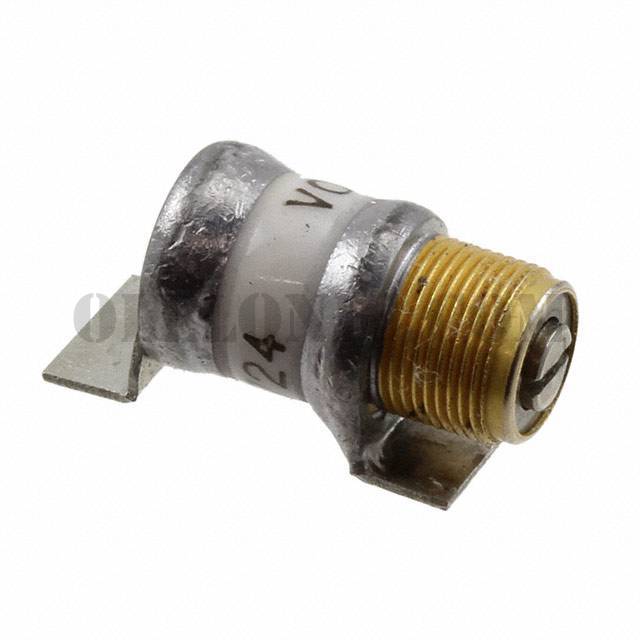

AJ15HV

Part NumberAJ15HV
