ALD1102PAL


ALD1102PAL

Part NumberALD1102PAL

Manufacturer

Description

Datasheet

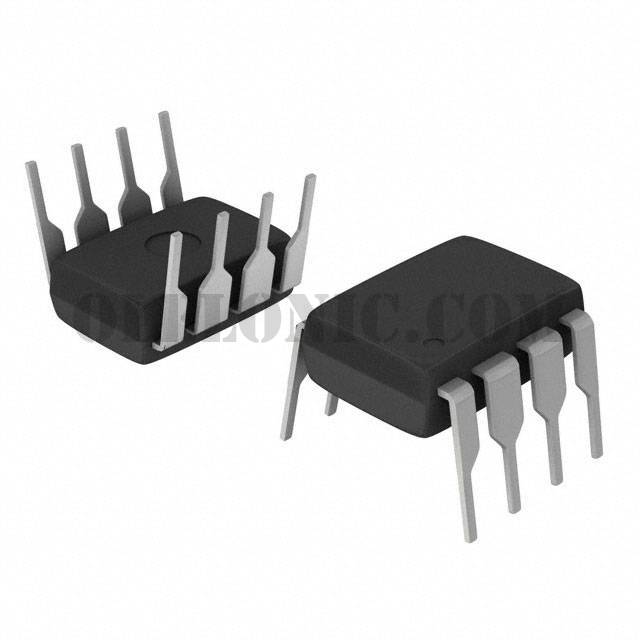

Package / Case8-DIP (0.300", 7.62mm)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

ALD1102PAL - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet
Standard Package50
ManufacturerAdvanced Linear Devices Inc.
Series-
PackagingTube
Part StatusActive
FET Type2 P-Channel (Dual) Matched Pair
FET FeatureStandard
Drain to Source Voltage (Vdss)10.6V
Current - Continuous Drain (Id) @ 25°C-
Rds On (Max) @ Id, Vgs270Ohm @ 5V
Vgs(th) (Max) @ Id1.2V @ 10µA
Gate Charge (Qg) (Max) @ Vgs-
Input Capacitance (Ciss) (Max) @ Vds10pF @ 5V
Power - Max500mW
Operating Temperature0°C ~ 70°C (TJ)
Mounting TypeThrough Hole
Package / Case8-DIP (0.300", 7.62mm)
Supplier Device Package8-PDIP
