ACM9070-701-2PL-TL01
ACM9070-701-2PL-TL01

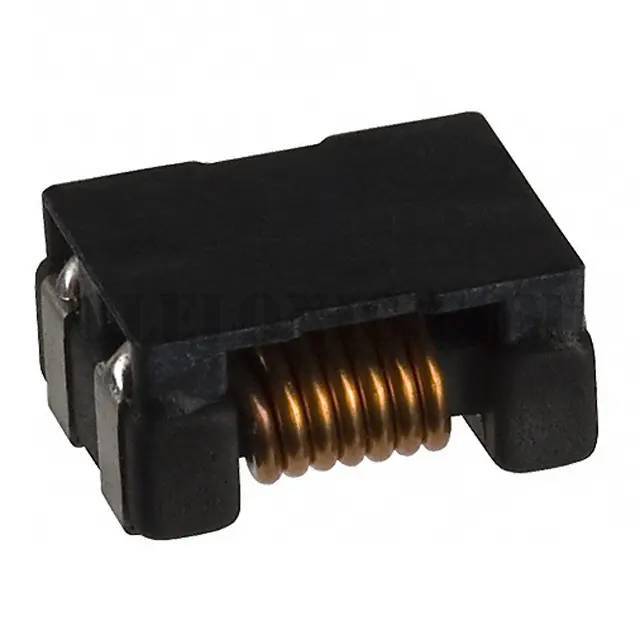

Part Number ACM9070-701-2PL-TL01 Description CMC 5A 2LN 700 OHM SMD Package / Case Horizontal, 4 PC PadUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 2 Line Common Mode Choke Surface Mount 700 Ohms @ 100MHz 5A DCR 10mOhm
To learn about the specification of ACM9070-701-2PL-TL01, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ACM9070-701-2PL-TL01 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ACM9070-701-2PL-TL01.
We are offering ACM9070-701-2PL-TL01 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
ACM9070-701-2PL-TL01 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet ACM9070 Series, Commercial Standard Package 1 Manufacturer TDK Corporation Series ACM Packaging Cut Tape (CT) Part Status Active Filter Type Power Line Number of Lines 2 Impedance @ Frequency 700 Ohms @ 100MHz Current Rating (Max) 5A DC Resistance (DCR) (Max) 10mOhm Voltage Rating - DC 80V Voltage Rating - AC - Operating Temperature -40°C ~ 85°C Ratings - Approvals - Features - Mounting Type Surface Mount Size / Dimension 0.354" L x 0.276" W (9.00mm x 7.00mm) Height (Max) 0.177" (4.50mm) Package / Case Horizontal, 4 PC Pad
