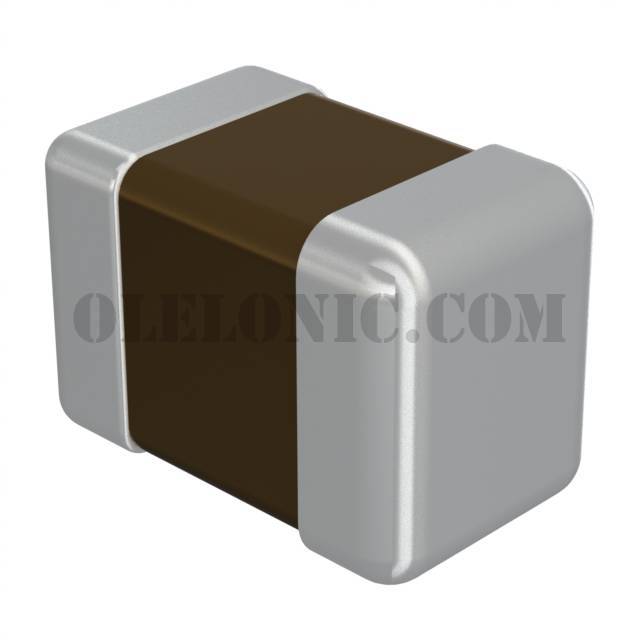

Categories	Capacitors / Ceramic Capacitors
Datasheet	885012107018 Drawing
Standard Package	3000
Manufacturer	Wurth Electronics Inc.
Series	WCAP-CSGP
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	4.7µF
Tolerance	±20%
Voltage - Rated	25V
Temperature Coefficient	X5R
Operating Temperature	-55°C ~ 85°C
Features	-
Ratings	-
Applications	General Purpose
Mounting Type	Surface Mount, MLCC
Package / Case	0805 (2012 Metric)
Size / Dimension	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)	-
Thickness (Max)	0.057" (1.45mm)
Lead Spacing	-
Lead Style	-
