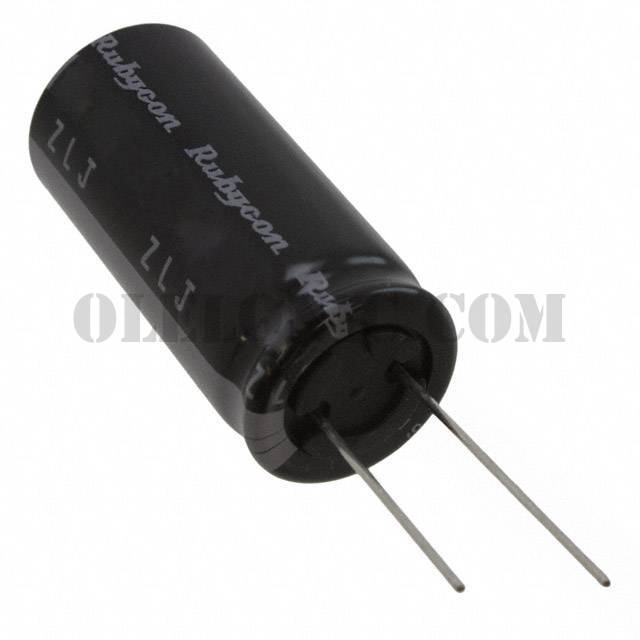

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	ZLJ Series
Standard Package	250
Manufacturer	Rubycon
Series	ZLJ
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	680µF
Tolerance	±20%
Voltage - Rated	80V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.375A @ 120Hz
Ripple Current @ High Frequency	2.5A @ 100kHz
Impedance	36 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
