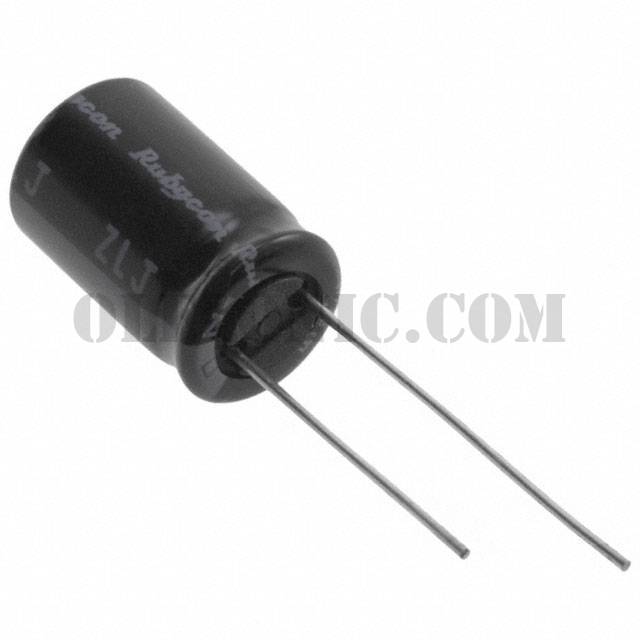

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	ZLJ Series
Standard Package	500
Manufacturer	Rubycon
Series	ZLJ
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	390µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.1A @ 120Hz
Ripple Current @ High Frequency	2A @ 100kHz
Impedance	38 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.689" (17.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

100ZLJ150MG412.5X20	Rubycon, 150µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
100ZLJ33M8X11.5	Rubycon, 33µF 100V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, ZLJ	View
80ZLJ470M16X25	Rubycon, 470µF 80V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
63ZLJ820MGC16X25	Rubycon, 820µF 63V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
100ZLJ680M16X40	Rubycon, 680µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
6.3ZLJ1500M8X20	Rubycon, 1500µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 9000 Hrs @ 105°C, ZLJ	View
80ZLJ680MGC18X25	Rubycon, 680µF 80V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
100ZLJ270MGC16X20	Rubycon, 270µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
80ZLJ27M6.3X11	Rubycon, 27µF 80V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLJ	View
16ZLJ470MT78X11.5	Rubycon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can 9000 Hrs @ 105°C, ZLJ	View
50ZLJ27M5X11	Rubycon, 27µF 50V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, ZLJ	View
80ZLJ150M12.5X16	Rubycon, 150µF 80V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View

35ZLJ390MT810X16

Part Number35ZLJ390MT810X16
