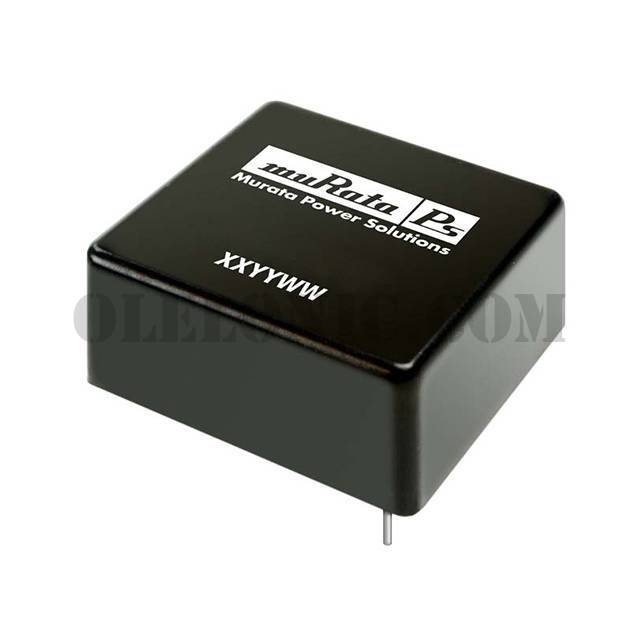

80305C

80305C

Part Number80305C

ManufacturerMurata Power Solutions Inc.

DescriptionFIXED IND 30UH 2A 600 MOHM

Datasheet803 Series Datasheet

Package / CaseRadial, Horizontal, Corner Terminals

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description30µH Unshielded Toroidal Inductor 2A 600mOhm Max Radial, Horizontal, Corner Terminals

To learn about the specification of 80305C, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 80305C with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 80305C.
We are offering 80305C for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

80305C - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	803 Series Datasheet
Standard Package	20
Manufacturer	Murata Power Solutions Inc.
Series	803
Packaging	Tube
Part Status	Not For New Designs
Type	Toroidal
Material - Core	-
Inductance	30µH
Tolerance	±10%
Current Rating (Amps)	2A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	600mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	0°C ~ 70°C
Mounting Type	Through Hole
Package / Case	Radial, Horizontal, Corner Terminals
Supplier Device Package	-
Size / Dimension	0.866" L x 0.866" W (22.00mm x 22.00mm)
Height - Seated (Max)	0.433" (11.00mm)

80305C - Related Products

	80305C	Murata Power Solutions Inc., 30µH Unshielded Toroidal Inductor 2A 600mOhm Max Radial, Horizontal, Corner Terminals, 803	View
	80301C	Murata Power Solutions Inc., 75µH Unshielded Toroidal Inductor 1A 100mOhm Max Radial, Horizontal, Corner Terminals, 803	View
	80303C	Murata Power Solutions Inc., 75µH Unshielded Toroidal Inductor 1A 65mOhm Max Radial, Horizontal, Corner Terminals, 803	View
