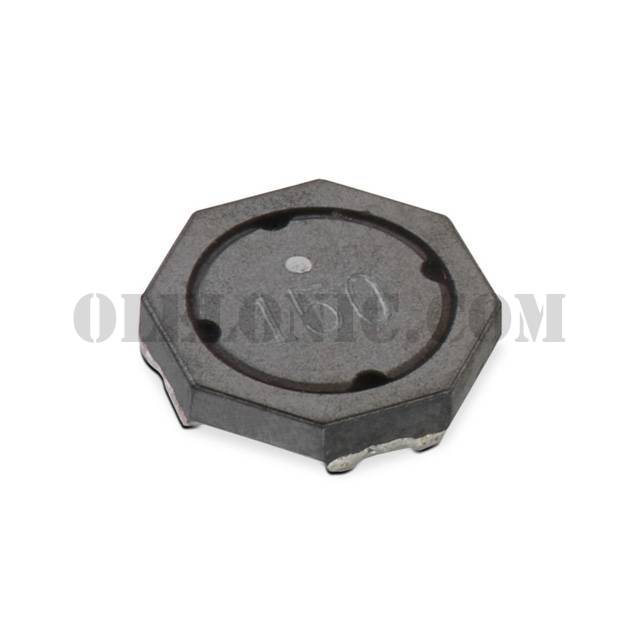

76889430150

Part Number76889430150

ManufacturerWurth Electronics Inc.

DescriptionINDUCTOR ARRAY 2 COIL 15UH SMD

Datasheet76889430150 Drawing

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionShielded 2 Coil Inductor Array Inductance - Connected in Series 15µH Inductance - Connected in Parallel 422mOhm DC Resistance (DCR) - Parallel 0.95A Nonstandard

To learn about the specification of 76889430150, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 76889430150 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 76889430150.
We are offering 76889430150 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

76889430150 - Product Attributes

Categories	Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet	76889430150 Drawing
Standard Package	2000
Manufacturer	Wurth Electronics Inc.
Series	WE-TDC HV
Packaging	Tape & Reel (TR)
Part Status	Active
Number of Coils	2
Inductance - Connected In Parallel	15µH
Tolerance	±20%
Current Rating - Parallel	0.95A
Current Saturation - Parallel	1.3A
DC Resistance (DCR) - Parallel	422mOhm
DC Resistance (DCR) - Series	-
Shielding	Shielded
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.315" L x 0.315" W (8.00mm x 8.00mm)
Height	0.083" (2.10mm)
